PE4710 IPS HDPE Pipe Dimensions: DR 11 Reference

Do not label the entire table ASTM D3035. ASTM D3035-22 covers IPS 1/2 through 3; ASTM F714-25 covers IPS 4 and larger, DIPS 3 and larger, and metric 90 mm and larger. Actual ID varies under the applicable specification.

Nominal Size

A size designation, not necessarily the measured OD.

Outside Diameter

The controlled OD within a sizing system.

Wall Thickness

The minimum wall required by the dimensional specification.

Inside Diameter

Distinguish calculated ID from the manufacturer-published average ID.

Dimension Ratio

OD divided by the minimum wall thickness.

Lower DR means a thicker wall for the same OD. Higher DR means a thinner wall. DR is a ratio, not a wall thickness.

For broad ID references see the Pipe Inside Diameter Chart.

IPS is the Iron Pipe Size outside-diameter system. The same IPS nominal size uses the same controlled OD across DRs. Small and large sizes fall under different active standards, which the table labels.

DIPS is the Ductile Iron Pipe Size outside-diameter system. It facilitates connection to ductile-iron-size infrastructure. It is not the same as IPS at the same nominal label.

For nominal 4 in., IPS OD is 4.500 in. and DIPS OD is 4.800 in., a 0.300 in. difference. This changes fittings, fusion equipment components, mechanical couplings, flange adapters and connections.

HDPE may also use CTS (Copper Tube Size) or metric OD systems. Do not mix those values into an IPS or DIPS table. ASTM F714-25 covers metric 90 mm and larger under its stated scope.

DR is the broad dimension-ratio concept. SDR means a standardized dimension ratio series. Use the term that the governing standard or product marking uses, and do not casually replace every DR designation with SDR.

Common HDPE dimension ratios include DR 7, 7.3, 9, 11, 13.5, 15.5, 17, 21, 26 and 32.5. Not every DR is available for every size, material, standard or application.

The DR 11 table at the top is the main reference. It has the 1 to 12 in. IPS PE4710 product sizes, controlled OD, minimum wall, published average ID and PPI TR-7 weight. In the product basis shown here, DR 11 carries a 200 psi water-service pressure class at 73.4°F.

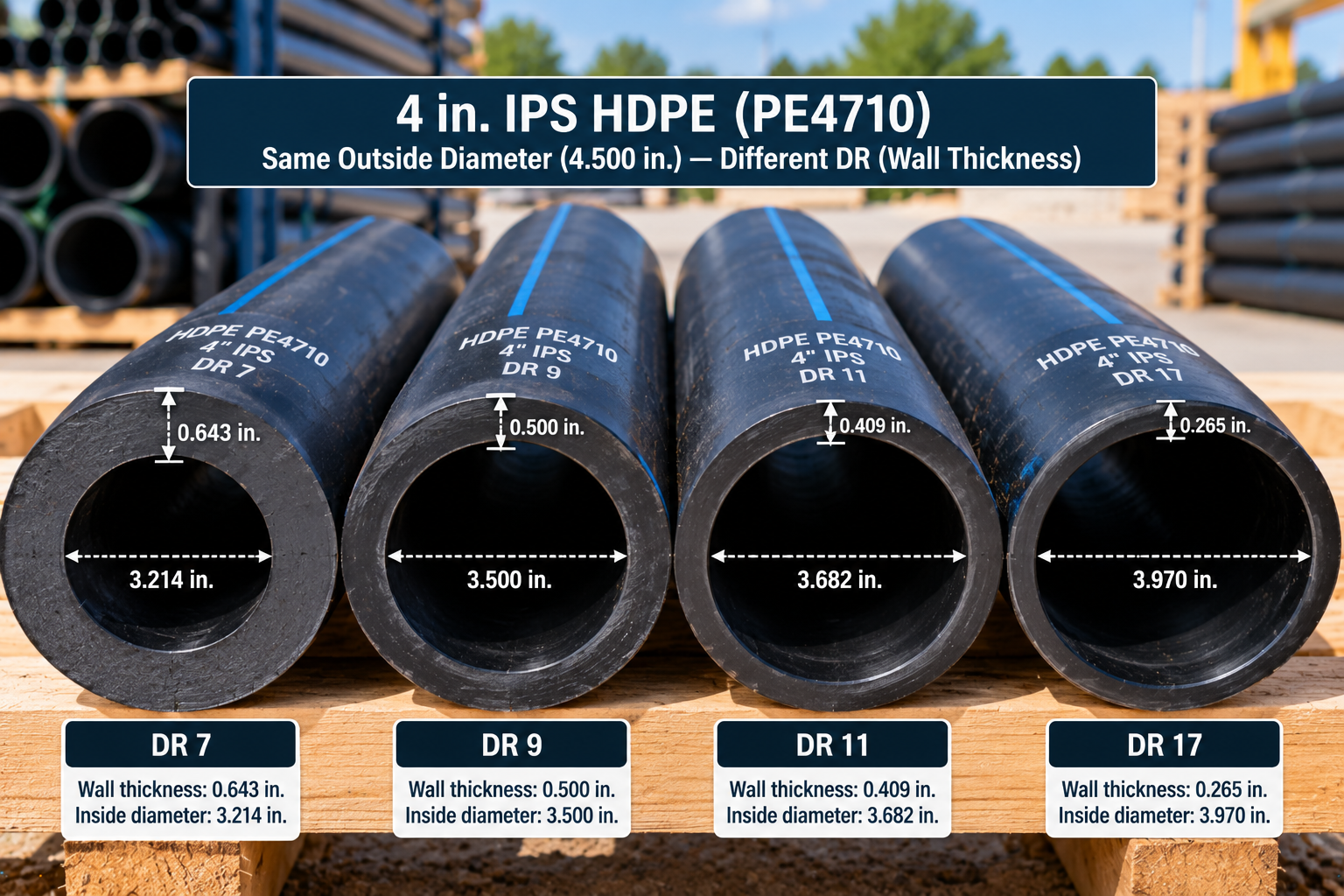

DR 17 has a thinner wall and a larger ID than DR 11 at the same IPS OD. The average IDs below use the same manufacturer convention as the DR 11 table (nominal OD minus twice the minimum wall plus 6%).

For example, 4-in. IPS DR 17 has a 0.265 in. minimum wall and about 3.938 in. published average ID; 6-in. has 0.390 in. minimum wall and about 5.798 in. ID.

Pressure rating is not determined by DR alone. The material, hydrostatic design basis or stress, design factor, DR, temperature, fluid or service and governing standard all matter. For PE4710 water-service products under the manufacturer basis used here, common reference pressure classes are below. They are not universal DR definitions.

PR is pressure rating under the applicable basis, and S is the allowable or design hydrostatic stress used in that system. Establish material, design factor, temperature, service and governing standard before using the relationship. Do not substitute a generic material stress value.

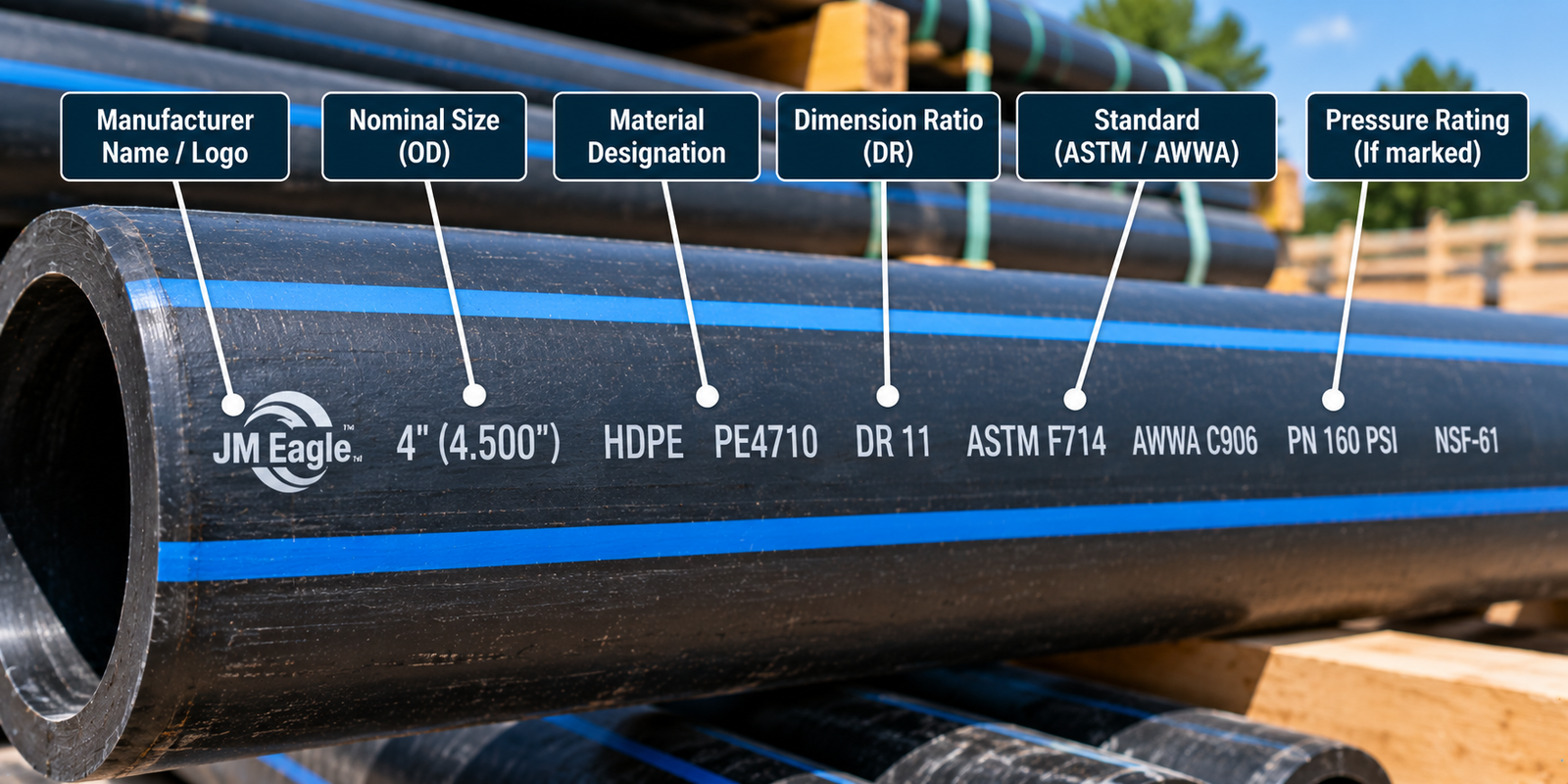

PE4710 is a modern polyethylene material designation used widely in U.S. pressure-pipe systems. For this chart, the useful points are the material marking, the pressure-rating basis, the standards and the pipe print line. AWWA C906 specifically references PE4710 for waterworks pressure pipe and fittings.

ASTM D3035-22 is the active controlled-OD PE pipe standard for IPS 1/2 through 3. Its scope is narrower than older editions, and it directs DIPS and larger sizes toward standards such as F714 or AWWA C906. Do not repeat legacy charts that use D3035 for all large HDPE sizes.

ASTM F714-25 is the active large-diameter PE dimensional standard for DIPS size 3 and larger, IPS size 4 and larger, and metric 90 mm and larger. It covers both pressure and nonpressure applications, including water, sewage, industrial liquids, effluent and slurries.

AWWA C906 covers PE pressure pipe and fittings for waterworks, with PE4710 and sizes 4 through 65 in. in the cited scope. Project specifications and the current adopted standard control waterworks systems.

Pipe weight rises with OD and wall thickness, so lower DR generally means more weight. The main product table shows 4-in. IPS PE4710 DR 11 at 2.31 lb/ft. Comparable manufacturer data lists about 1.92 lb/ft at DR 13.5 and 1.69 lb/ft at DR 15.5. This page uses the figures only to show DR effects. See the Pipe Weight Chart and the Pipe Weight Calculator for broader estimating.

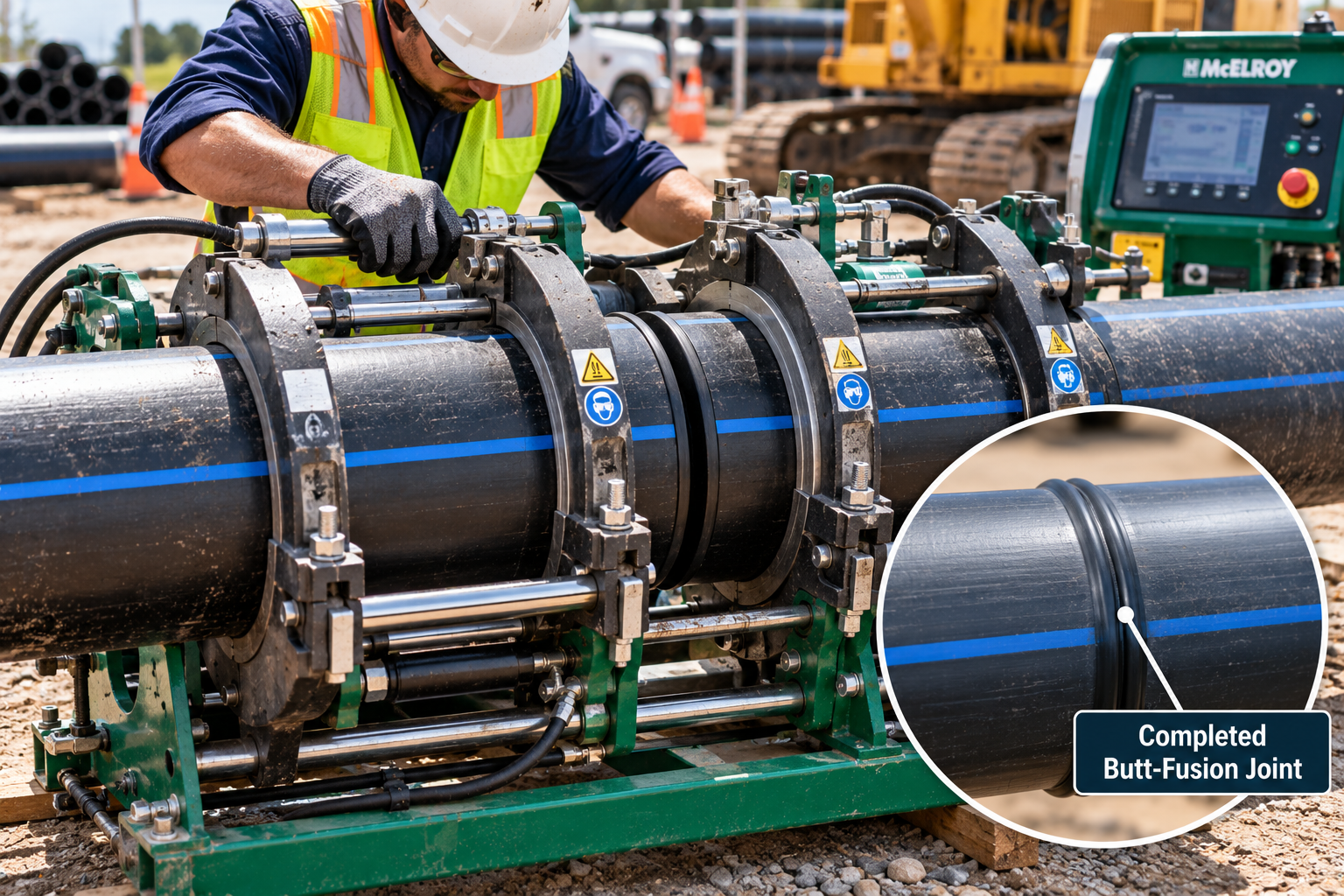

HDPE connection methods include butt fusion, electrofusion, mechanical connections, flange adapters and transition fittings. Connection selection must match the OD system, DR, material and product compatibility. ASTM F2620 is an important heat-fusion procedure reference, while the dimensional product standards remain separate.

For flanged transitions, see the Pipe Flange Size Chart.

Use the sequence below. It prevents selecting from nominal size alone.

The checker returns t = OD ÷ DR and geometric ID = OD − 2t. It does not return a manufacturer average ID or pressure rating.

Limitations
