What Controls Foundation Depth?

Foundation depth is a dimension measured from a specified ground or reference elevation to a defined foundation elevation. The bottom of the footing, the top of the footing, and the bottom of the excavation are three different reference points that should not be confused with each other when discussing or measuring depth.

Foundation embedment is distinct from concrete footing thickness. A footing could be 8 in thick but have its bottom several feet below grade. Footing width, thickness, embedment, and excavation depth are related but separate terms; see the Footing Size Chart for footing width and thickness data rather than duplicating that dataset here.

Frost depth is a climatic or locally adopted frost-protection criterion, while foundation depth is the actual constructed elevation after all applicable requirements are considered together. See the Foundation Frost Depth Chart for the complete frost-line, frost-heave, and FPSF reference; this page focuses on the actual constructed embedment that results once frost protection, bearing soil, and other factors are combined.

Section R403.1.4 requires exterior footings to be placed not less than 12 in below the undisturbed ground surface, everywhere, regardless of climate, in addition to whatever frost-protection depth is required under Section R403.1.4.1. Both conditions must be satisfied; whichever depth is greater governs. The 12-in requirement does not establish a universal permissible footing depth; it is only the baseline minimum before frost and other requirements are applied.

See the Foundation Frost Depth Chart for the complete explanation of each method.

Locations with little seasonal frost may satisfy foundation depth with the 12-in general minimum alone, while locations with substantial freezing require the footing to extend to a much deeper locally adopted frost line. Two identical houses can require very different conventional footing depths depending on location; this chart does not publish unsupported statewide depths, since actual frost-line values are established locally, not nationally.

Foundations must reach material capable of supporting the design loads. A high allowable bearing value does not automatically prescribe a shallow embedment, and a low value does not automatically mean deeper excavation will solve the problem; a low-bearing condition may instead require a wider footing, a different foundation system, or soil improvement. See IRC R401 and the Soil Bearing Capacity Calculator for the bearing-specific reference.

Footings normally bear on undisturbed natural soil or engineered fill, not uncontrolled loose backfill. Unsuitable material such as topsoil, organic deposits, or loose fill must be removed or properly addressed. Excavation overdepth, compaction, and ground preparation must follow the approved design rather than being left to field judgment alone.

Soil composition, density, drainage, shrink-swell behavior, and bearing conditions can affect the required foundation system. There is no fixed footing depth for every soil type. Rock foundations deserve separate mention because the IRC recognizes solid-rock bearing as a frost-protection alternative under its specified conditions, distinct from the ordinary soil-bearing discussion.

High groundwater affects construction dewatering, drainage, waterproofing, and flotation or uplift where applicable. Deeper excavation can introduce additional groundwater and construction problems rather than automatically improving a foundation; groundwater conditions should be evaluated before assuming that greater depth is beneficial.

Spread footings, strip footings, isolated pads, and raft or mat foundations are all categorized as shallow foundations. Their geometries differ substantially. Shallow foundation is a structural and geotechnical category describing relatively shallow bearing depth relative to footing width, not a promise of one exact excavation depth for every project.

Slab thickness is distinct from the perimeter footing or thickened-edge depth supporting the slab’s exterior. Frost protection, soil preparation, exterior grade, insulation, and the connection to conventional or FPSF systems all factor into the perimeter foundation depth for a slab-on-grade building; see the Concrete Slab Thickness Chart for slab thickness specifically.

Crawl-space clearance, exterior footing embedment, foundation-wall height, drainage, vapor control, and access are all related but separate considerations. Crawl-space depth and footing depth should not be treated as interchangeable measurements; the footing must still satisfy the applicable frost and bearing requirements regardless of the crawl-space clearance chosen above it.

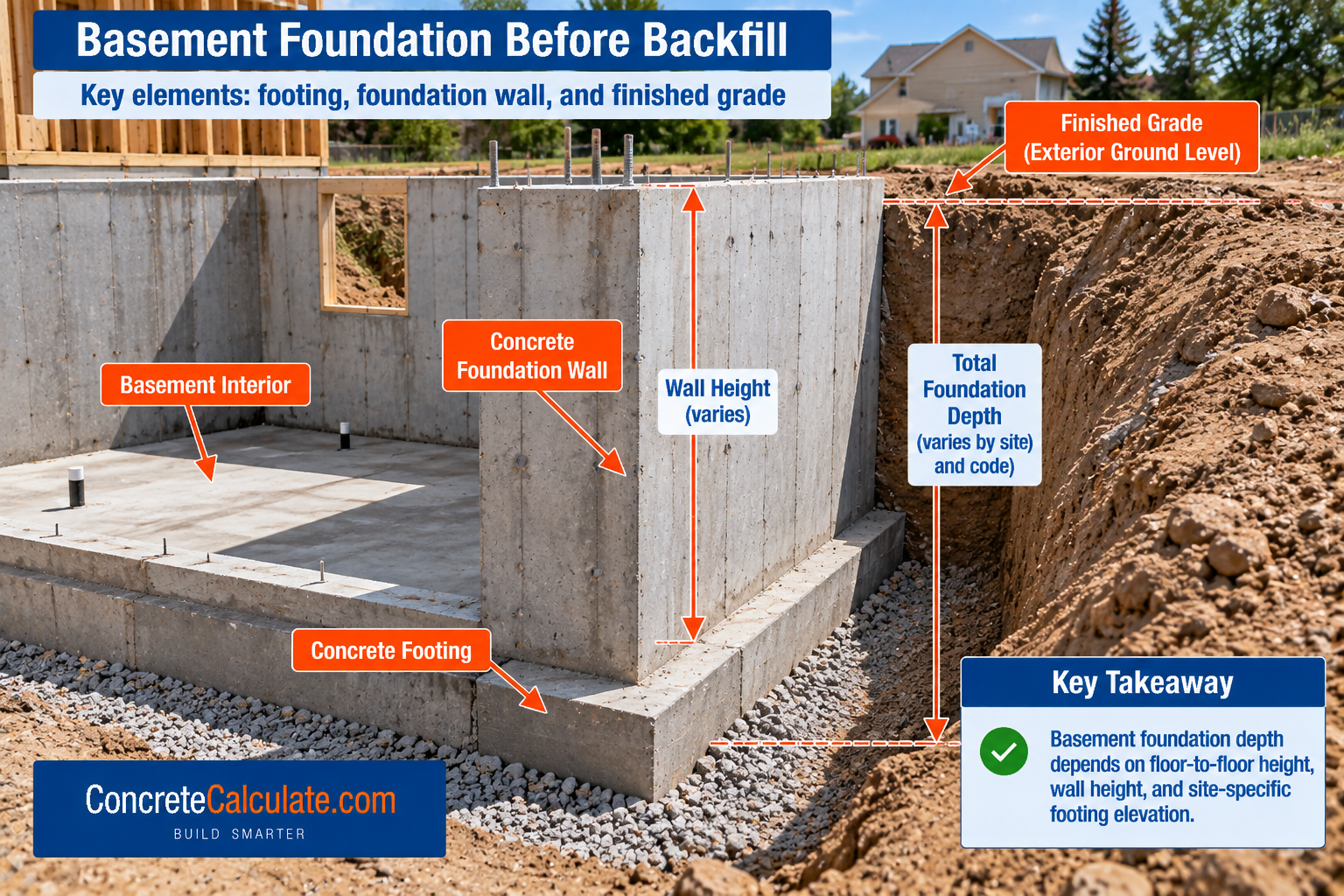

Basement foundation depth involves the relationship between basement floor elevation, footing bottom, wall height, floor-system geometry, groundwater, and backfill. There is no universal basement excavation depth without knowing the intended floor-to-floor height and site conditions for the specific project.

Strip footings run continuously beneath a foundation wall, while isolated footings support individual columns or posts as discrete pads. Frost protection, load transfer, bearing soil, and the geometry needed differ between the two systems, though both must satisfy the same fundamental frost-protection and bearing principles.

Deck footings follow the IRC’s separate R507.3 provisions in addition to the general R403.1.4 frost-protection requirement for permanent supports. Attached decks, freestanding decks, permanent piers, and exceptional small deck configurations can have different requirements depending on the specific configuration and local adoption. See the Deck Footing Size Chart for the complete deck-specific reference.

Ordinary garages generally require the same frost protection as the main residence. The 2024 IRC provides an exception for qualifying small freestanding accessory structures: light-frame structures up to 600 sq ft and other-than-light-frame structures up to 400 sq ft, both subject to a maximum 10-ft eave height and local adoption.

Shallow foundations can become unsuitable because of heavy loads, weak near-surface soil, settlement concerns, scour, or other site conditions. Deep-foundation length, such as piles or drilled shafts, is engineered from geotechnical and structural criteria and cannot be determined from a standard residential depth chart; these require project-specific engineering.

The 2024 IRC requires the tops of footings to be level and limits the slope of footing bottoms to 1 vertical in 10 horizontal (10 percent) before stepping is required. Sloping sites also raise questions of suitable bearing elevation, footing setbacks, and adjacent slope stability that go beyond the simple depth number.

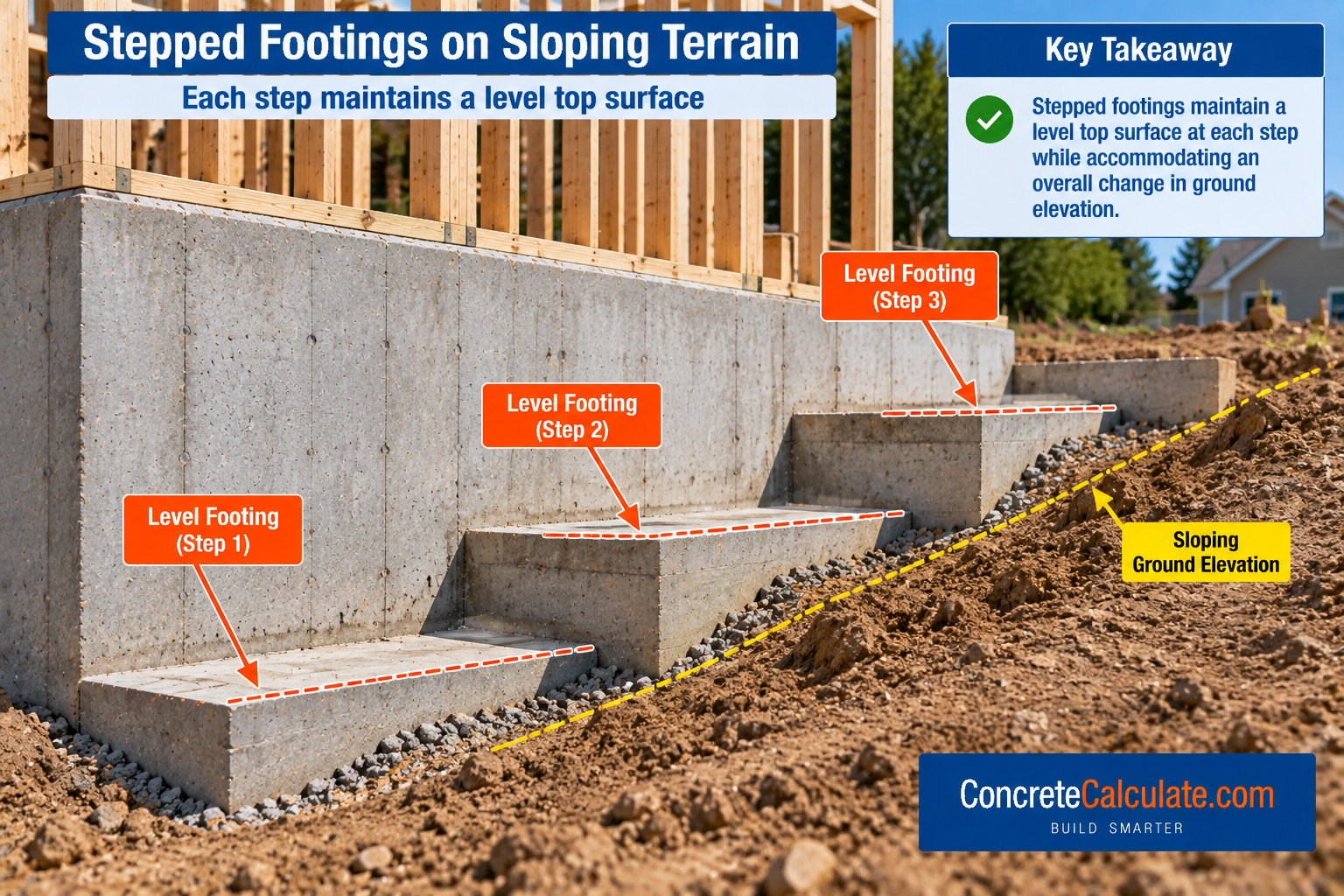

Footings are stepped where necessary to change the elevation of the top surface of the footing or where the ground slopes more than 1 vertical in 10 horizontal. Footing-step layout, which maintains a level top surface at each step, is distinct from excavation benching and shoring, which address worker safety and soil stability during excavation rather than the footing’s final geometry.

Adjacent foundation elevations, excavation stability, undermining risks, buried services, and property constraints can all affect an achievable or safe excavation depth near existing structures. Underpinning or a specialized excavation plan may be needed in circumstances where new excavation could destabilize an adjacent foundation or utility.

Wall and column loads, overturning, uplift, lateral loads, and settlement constraints all influence foundation design. Adding depth alone does not replace adequate footing area, reinforcement, or a suitable load path; these structural design elements must be addressed together with depth, not as a substitute for one another.

Expansive clay, uncontrolled fill, collapsible soil, organic deposits, and differential settlement risk all warrant additional investigation. Additional geotechnical investigation or an engineered foundation is appropriate for these conditions instead of a generic soil-based depth rule that assumes ordinary, well-behaved soil.

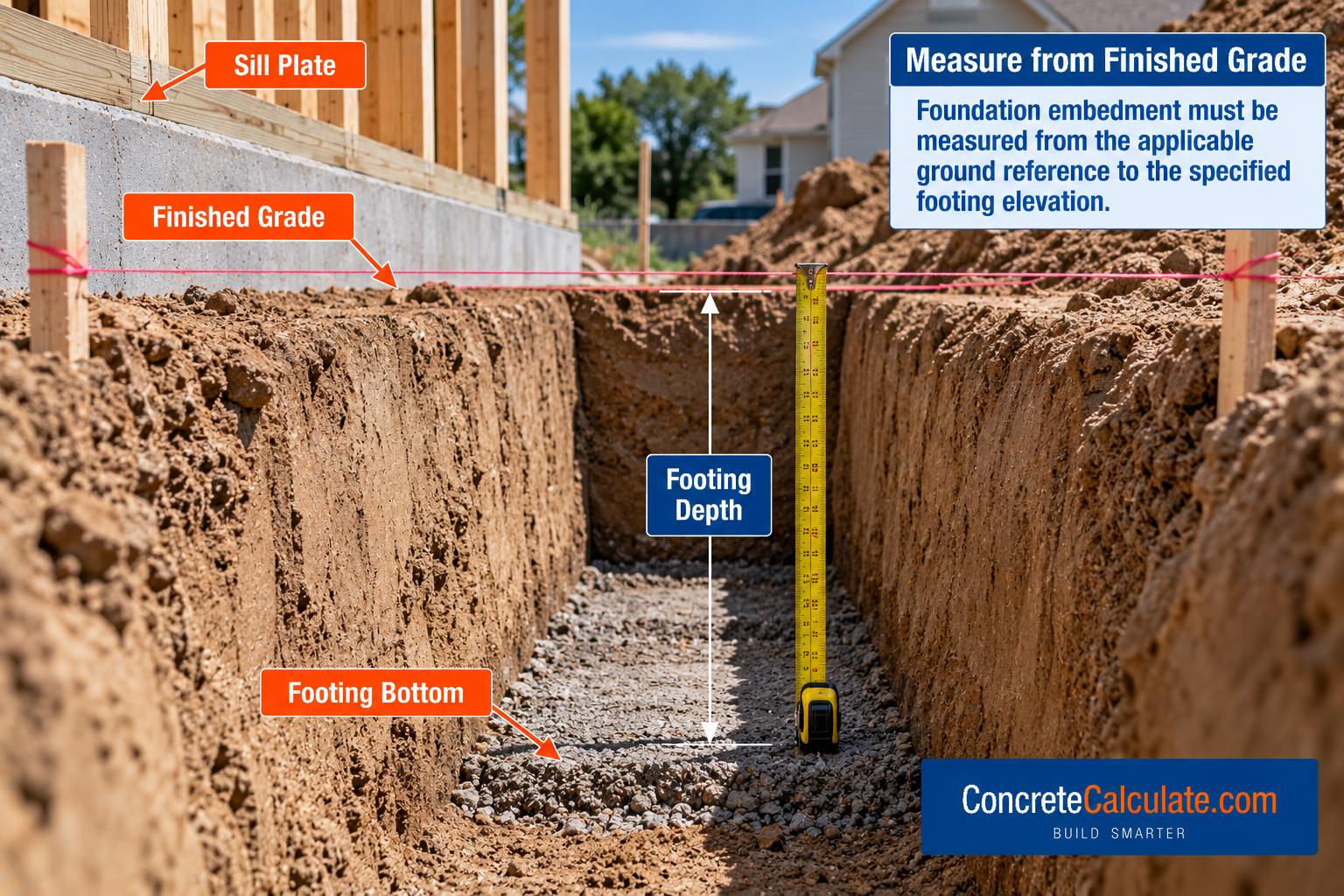

Finished grade, grading away from buildings, surface runoff, and below-grade drainage all matter when establishing foundation elevations. Depth measured below existing grade is a different reference than depth measured below final finished grade, and confusing the two references can lead to an actual embedment that differs from what was intended.

An illustrative geometric calculation distinguishes finished-grade elevation, footing-bottom elevation, footing thickness, any specified blinding or bedding layer, and excavation bottom. These calculations are construction geometry, not structural design; the actual required footing-bottom elevation itself comes from the code minimum, frost protection, and bearing requirements discussed throughout this chart.

These examples state every assumption and show which requirement controls; actual project depths must be verified against the locally adopted code and approved plans.
