On ceilings, 3/8-inch single-ply board is not permitted where a water-based textured finish will be applied or where it must support insulation above. With water-based texture, the IRC raises the minimum board thickness (3/8 to 1/2 inch on 16-inch framing, and 1/2 to 5/8 inch on 24-inch framing, or 1/2-inch sag-resistant ceiling board). Local adopted codes and project specifications may differ from the model code.

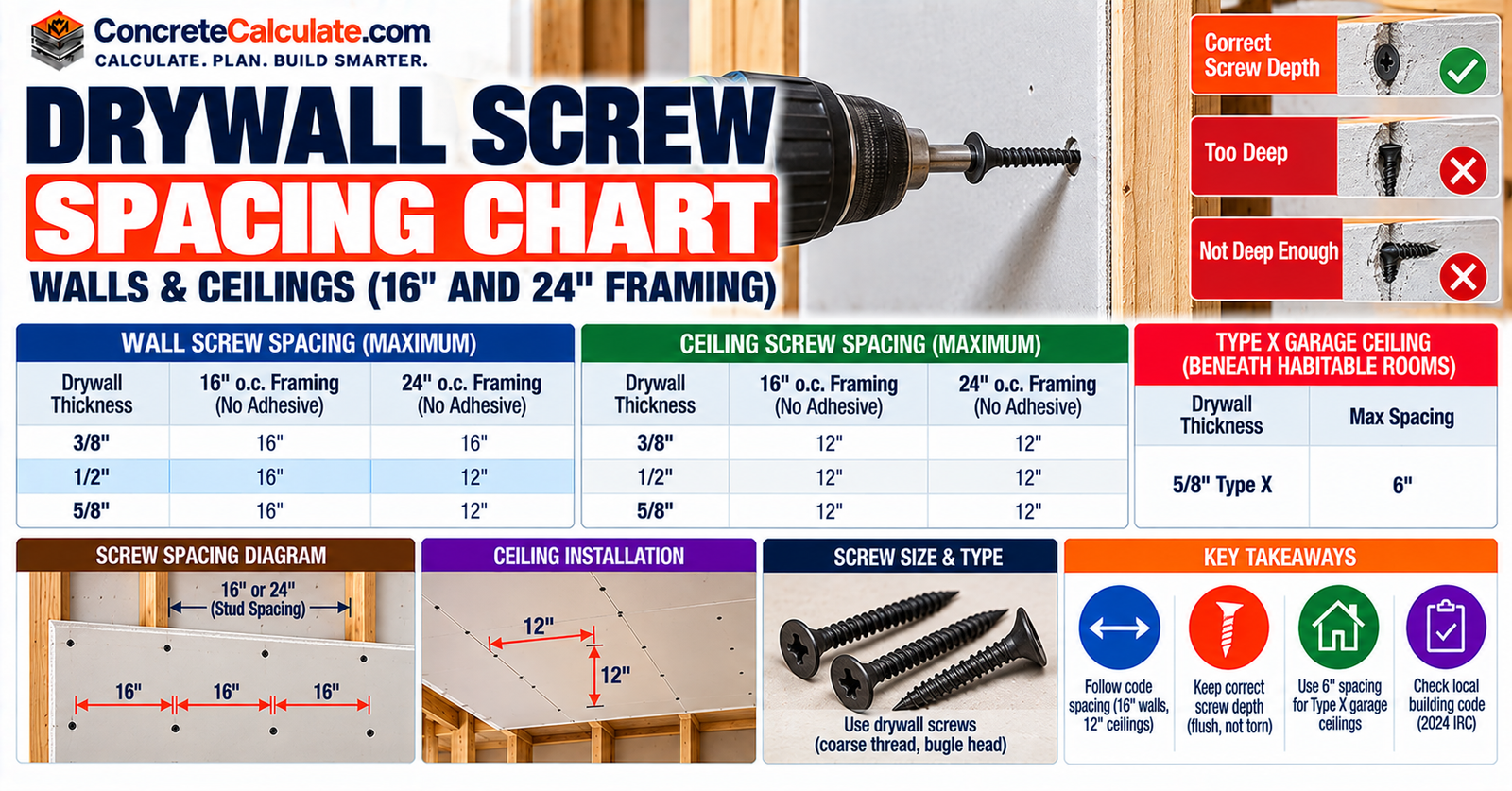

For ordinary non-fire-rated screwed work, the widely quoted manufacturer rule is 16 inches on walls and 12 inches on ceilings. That rule is a useful starting point, but the 2024 IRC gives a more precise schedule with exceptions the simple rule misses.

Conventional rule: USG recommendation for non-fire-rated assemblies, screws into wood or steel framing. IRC detail: Table R702.3.5, no adhesive. USG directs users to the relevant fire test for fire-rated assemblies.

“12 in. o.c.” means successive screw centerlines are no more than 12 inches apart along the framing member. It does not describe how far apart the studs are, and it does not describe how close a screw sits to the panel edge.

For help choosing between 16-inch and 24-inch layouts, see the wall stud spacing page.

Screws on walls follow the vertical studs. The maximum interval along each stud is set by board thickness and stud spacing, and it applies whether the sheet runs vertically or horizontally.

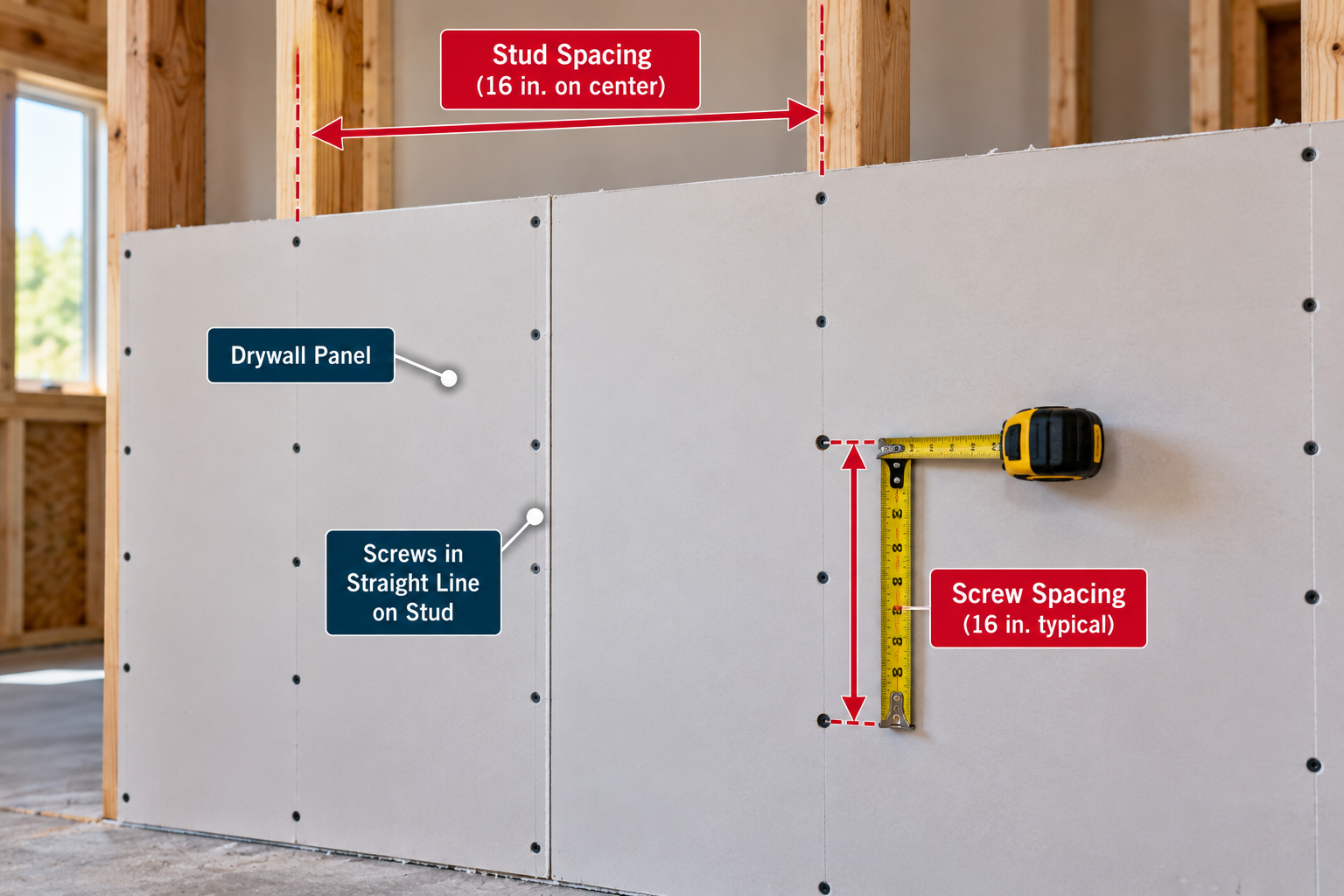

16-Inch Studs

With studs at 16 inches o.c., single-layer 3/8-, 1/2- and 5/8-inch wallboard installed without adhesive takes screws at a maximum of 16 inches along each stud. Studs at 16 inches does not mean screws are 16 inches apart across the face of the sheet. Screws follow the framing lines, so the horizontal distance between screw lines equals the stud spacing.

24-Inch Studs

This is where the “16 on walls” rule breaks. With studs at 24 inches o.c., 1/2- and 5/8-inch wallboard installed without adhesive needs screws at a maximum of 12 inches along each stud. The table does not list 3/8-inch single-layer board on 24-inch wall framing. Board thickness choices are covered in the drywall thickness chart.

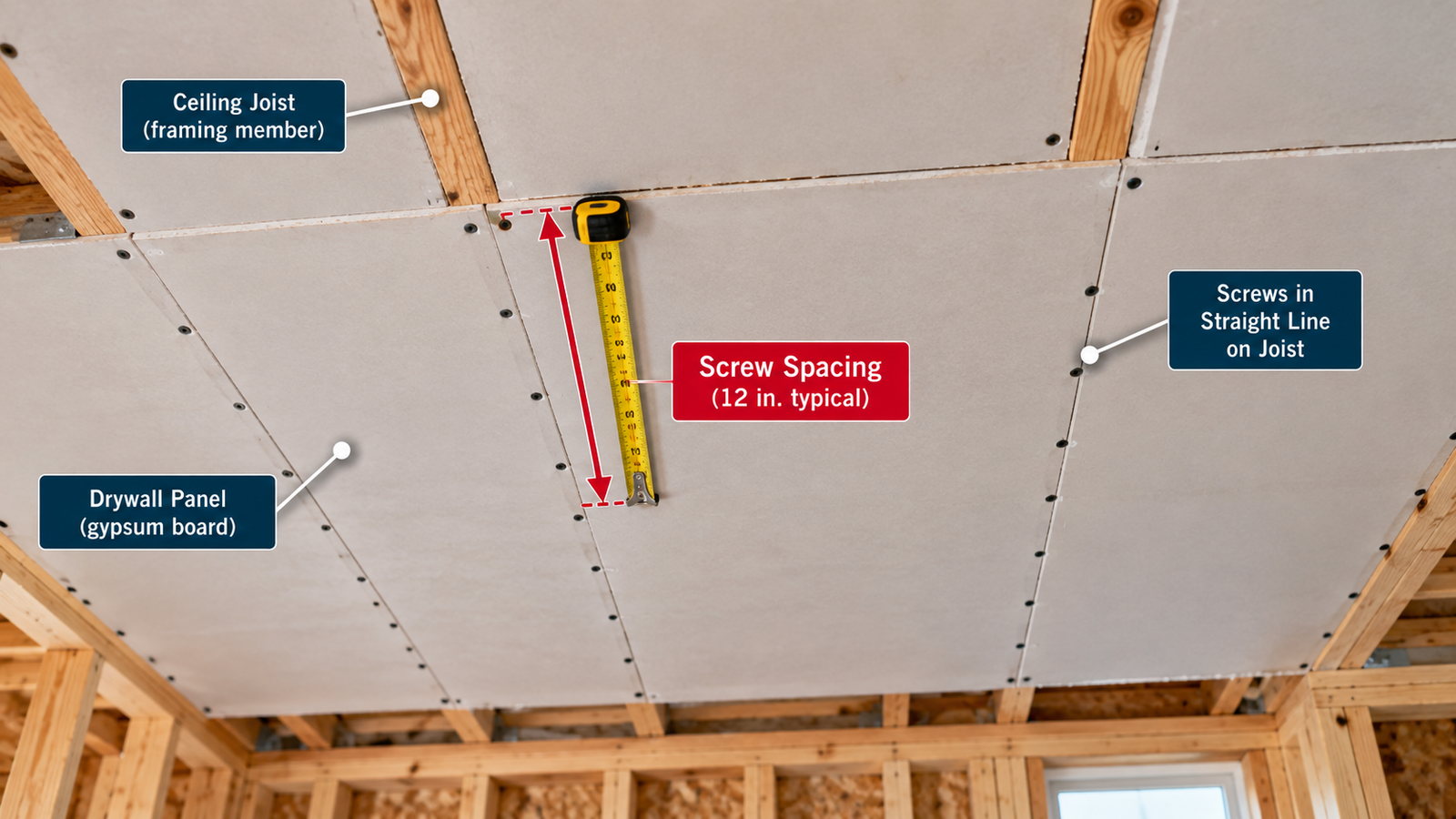

In the no-adhesive conditions of Table R702.3.5, ordinary ceilings take screws at a maximum of 12 inches along each joist, truss or furring member. Walls and ceilings should not share one combined rule, since gravity loads a ceiling board continuously and the table reflects that.

16-Inch Ceiling Framing

The 12-inch maximum applies to 3/8-inch board installed perpendicular to framing, and to 1/2- and 5/8-inch board installed in either direction. Remember the 3/8-inch limits: it is not permitted under water-based texture or where it must support insulation above.

24-Inch Ceiling Framing

For 1/2- and 5/8-inch board installed perpendicular to the framing, the maximum is also 12 inches. Board thickness and orientation both matter at 24 inches, so confirm your choice in the drywall thickness chart. If you are checking what spans your framing can carry, the ceiling joist span chart covers the framing side.

• Wall, 16-in. framing: 16 in. maximum screw spacing, no adhesive.
• Ceiling, 16-in. framing, perpendicular: 12 in. maximum, no adhesive.
• With adhesive: ceiling (perpendicular, 16-in. framing) 16 in.; wall (16-in. framing) 24 in.
• Ceiling limits: 3/8-in. single-ply board is not permitted under water-based texture or where it supports insulation above.

• Wall, 16-in. framing: 16 in. maximum.
• Wall, 24-in. framing: 12 in. maximum.
• Ceiling, 16-in. framing (either direction) or 24-in. framing (perpendicular): 12 in. maximum.
• With adhesive: see the adhesive chart below; wider spacing is permitted only under that schedule.

• Wall, 16-in. framing: 16 in. maximum.
• Wall, 24-in. framing: 12 in. maximum.
• Ceiling, 16-in. framing (either direction) or 24-in. framing (perpendicular): 12 in. maximum.
• Type X at a garage ceiling beneath habitable rooms: 6 in. maximum (separate row).
• Fire-rated assemblies: follow the listed design, which may differ from this table.

Type X is a fire-resistant board type, not a fastening schedule. The only Type X spacing in Table R702.3.5 is the garage-ceiling row. Where a fire rating is actually required, the tested and listed assembly sets the fastener type, length and spacing, and USG specifically points users to the relevant fire test.

That is double the fastener density of an ordinary ceiling. Do not extend it to every Type X ceiling, and do not describe it as a rated assembly unless you are following an exact tested design.

A fire-resistance rating belongs to a specific tested assembly: the board, framing, layers, fasteners and spacing together. That listed design can call for a different screw type, length or spacing than the general table, so the table on this page should not be used to assign spacing to a rated wall or ceiling.

Adhesive is not permission to skip screws. The adhesive must conform to ASTM C557 (or ASTM D6464 for expandable foam adhesives used with listed board), and it must be applied the way the code, the manufacturer and GA-216 require. For the two-layer rows, the IRC describes the base ply as fastened per the 1/2-inch board schedule with the face ply installed with adhesive.

The main chart at the top of the page is the no-adhesive schedule. In short:

• Wall over 16-inch framing: 16 in.
• Wall over 24-inch framing (1/2 or 5/8 in.): 12 in.
• Ordinary ceiling: 12 in.
• Type X garage ceiling beneath habitable rooms: 6 in.

The 2024 IRC allows Type W or Type S screws complying with ASTM C1002 for wood framing, with at least 5/8 inch of penetration into the wood. Wood framing that supports gypsum board must be at least 2 inches nominal in the least dimension, and 1-by-2 furring strips are allowed over solid backing or framing spaced no more than 24 inches o.c. To see what a nominal 2×4 actually measures, check the actual lumber sizes.

Screw length, gauge and head style are covered in the drywall screw size chart. This page keeps only the information needed to explain spacing and penetration.

Cold-formed steel framing that supports gypsum board must be at least 1-1/4 inches wide in its least dimension, and attachment uses a minimum No. 6 screw. The screw standard then changes with steel thickness. Steel thinner than 0.033 inch takes a Type S screw (ASTM C1002) or a bugle-head screw (ASTM C1513). Steel from 0.033 to 0.112 inch thick takes a screw complying with ASTM C954 or a bugle-head screw under ASTM C1513. If you only know the gauge, the steel sheet and stud thickness helps translate gauge to inches.

A Type S screw can be used in wood, but the Gypsum Association does not recommend a Type W screw in steel framing. ASTM C1002 also defines Type A for fastening metal plaster bases, which is outside this page’s scope. For length and gauge, see the drywall screw size chart.

Screws set too close to an edge can break out the paper and core, while screws too far from the edge leave the board edge poorly held. The edge-distance guidance is the one measurement most spacing charts leave out. The detailed diagram appears in the penetration section below.

The Gypsum Association says routine fastening into partition top and bottom (sole) plates is neither required nor recommended, except where fire ratings, structural performance requirements or other special conditions require attachment. If you are working on a rated or braced wall, follow the assembly instead.

Gypsum Association guidance agrees: screws into wood framing generally penetrate at least 5/8 inch, and screws into steel framing at least 3/8 inch. Penetration is also separate from head depth, covered in the next section.

Minimum Screw Length Calculation

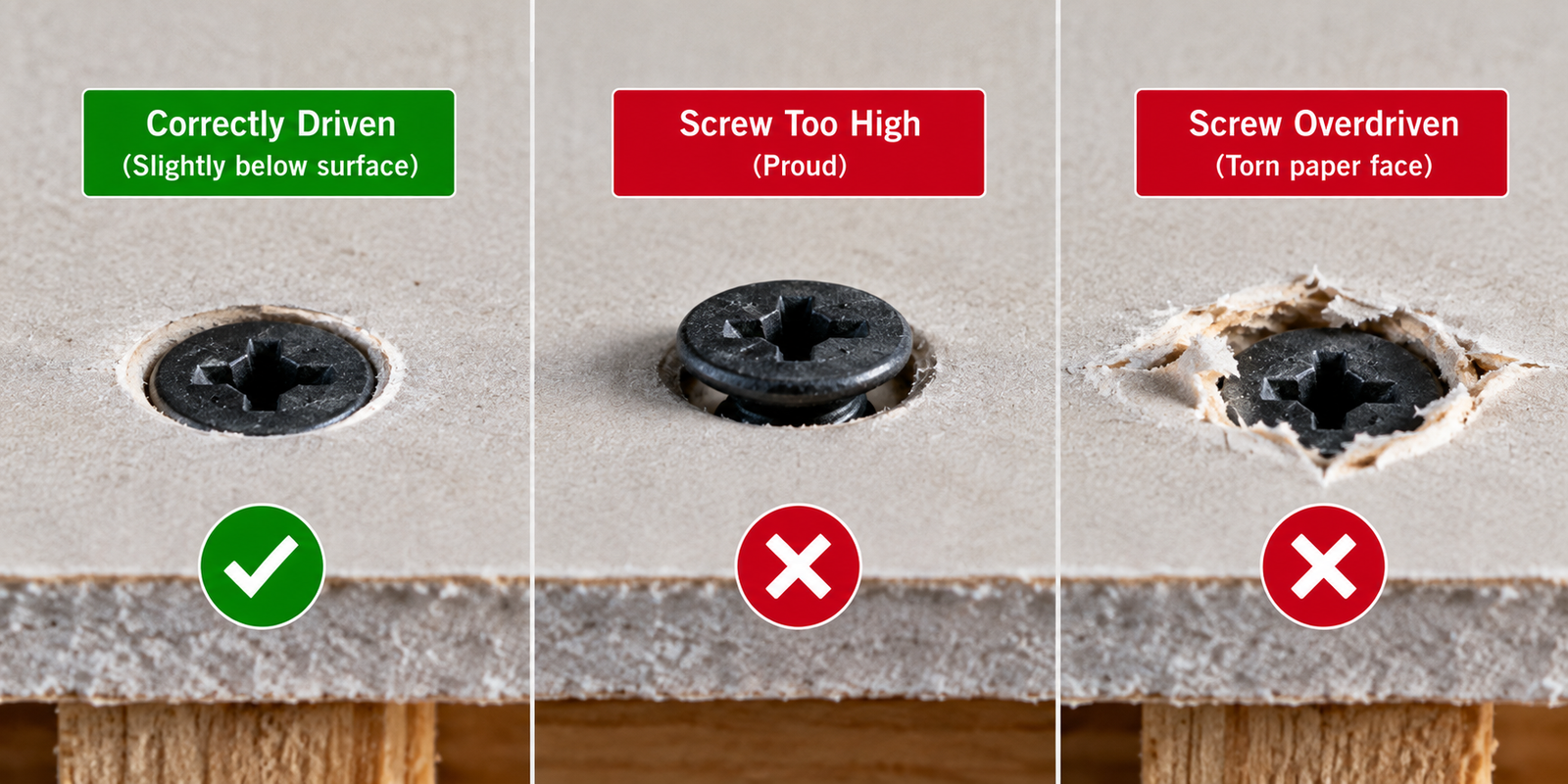

The Gypsum Association says screws should be driven so heads sit slightly below the panel surface without breaking the face paper, fracturing the core, or stripping the framing member around the screw. The head should draw the board firmly against the framing and leave a shallow dimple for joint compound to fill.

A torn paper face reduces the holding power of that fastening point. No numeric countersink depth is given here, because none is specified by the code or the standards used for this page.

1. Hold the panel in firm contact with the framing or underlying support.
2. Begin fastening in the center (field) of the panel and work toward the ends and edges, or begin along one edge and work sequentially toward the other.
3. Keep edge and end screws at least 3/8 inch from the panel edge.
4. Set each head slightly below the face without breaking the paper.

This sequence follows Gypsum Association guidance and helps avoid loose panels and poorly seated areas.

GA-216 gives separate fastening methods for base layers, face layers and adhesive-laminated layers. The IRC addresses only two 3/8-inch layers, and only with adhesive: the base ply is fastened per the 1/2-inch board schedule and the face ply is installed with adhesive, with 16-inch screw spacing on 16-inch ceiling framing and 24-inch screw spacing on 24-inch wall framing. For any other multilayer system, use the manufacturer or assembly instructions, since no single universal multilayer spacing exists.

The IRC allows gypsum board at right angles or parallel to framing. All edges and ends must land on framing, except edges and ends that run perpendicular to the framing. Screw spacing is still measured along each framing member, so a horizontal or vertical sheet on the same studs uses the same wall interval.

Orientation does matter on ceilings: the 24-inch framing rows and the 3/8-inch ceiling row require the board to run perpendicular to the framing. Around openings, see the door rough opening chart and window rough opening chart for opening sizes before planning joints.

Screw-Count Formulas

USG gives the same conventional non-fire-rated recommendation for nails (7 in. on ceilings, 8 in. on walls) and screws (12 in. on ceilings, 16 in. on walls). The 24-inch wall and garage rows are where the IRC differs from that simple rule.

Standards and References Used

Model code values are shown. Local adopted codes, manufacturer instructions, listed fire assemblies and project specifications can change the requirement for a given job.
