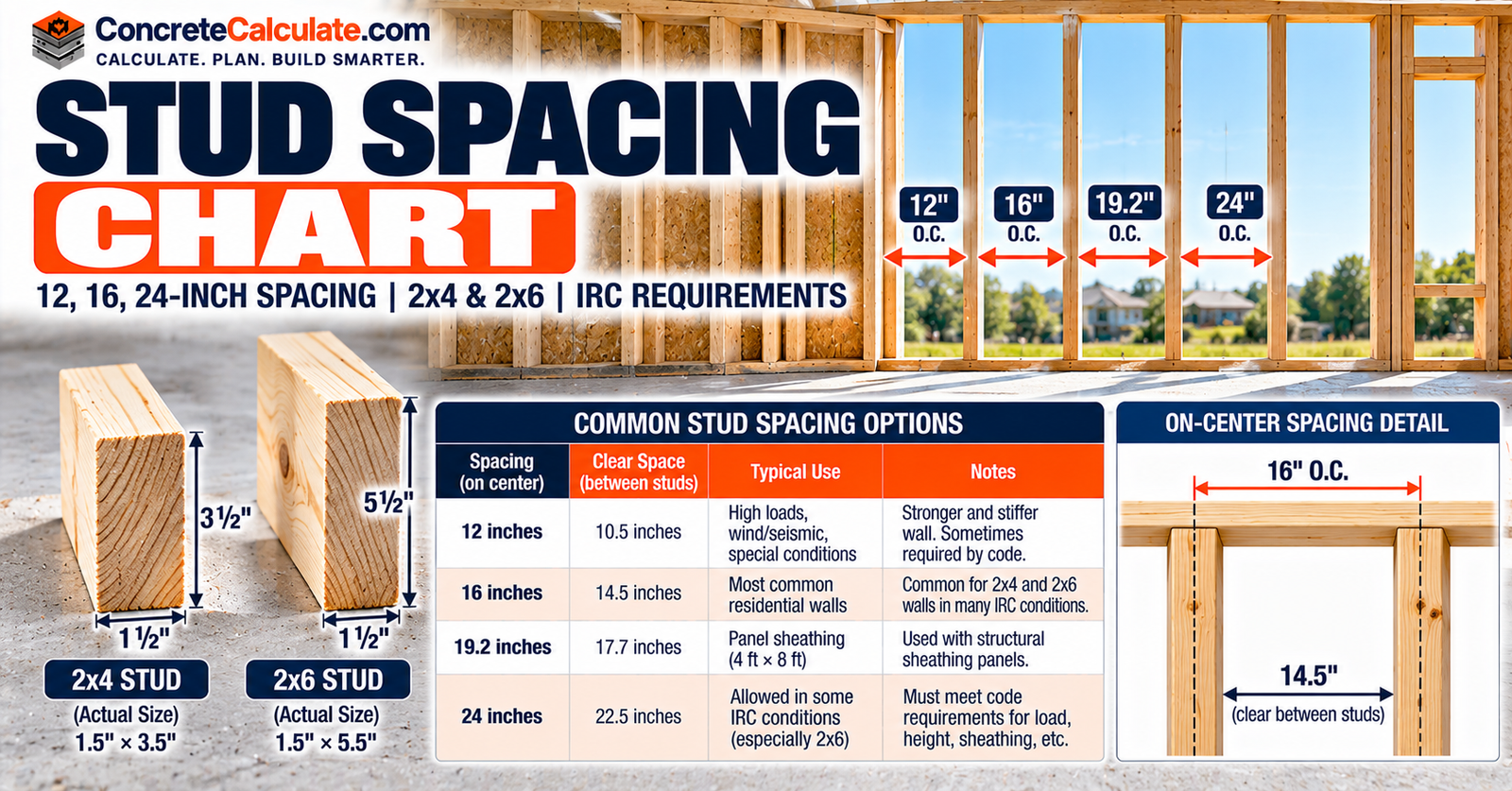

Standard Stud Spacing Quick Chart

Both 16- and 24-inch modules align with common 48-inch-wide panels: 16 inches divides 48 inches into three spaces, while 24 inches divides it into two spaces.

• Structural load transfer: Spacing works with stud size, grade and height to carry roof, floor and wall loads.
• Wall stiffness: Stud spacing affects how the wall supports finishes and responds with its sheathing and bracing system.
• Panel support: Plywood, OSB, gypsum board and some claddings must have compatible framing support.
• Insulation cavities: Wider spacing changes the geometric clear cavity between framing members.
• Quantity and layout: The regular module is only the starting point. Openings, corners, intersections, headers and connections add framing.

What Does 16 Inches on Center Mean?

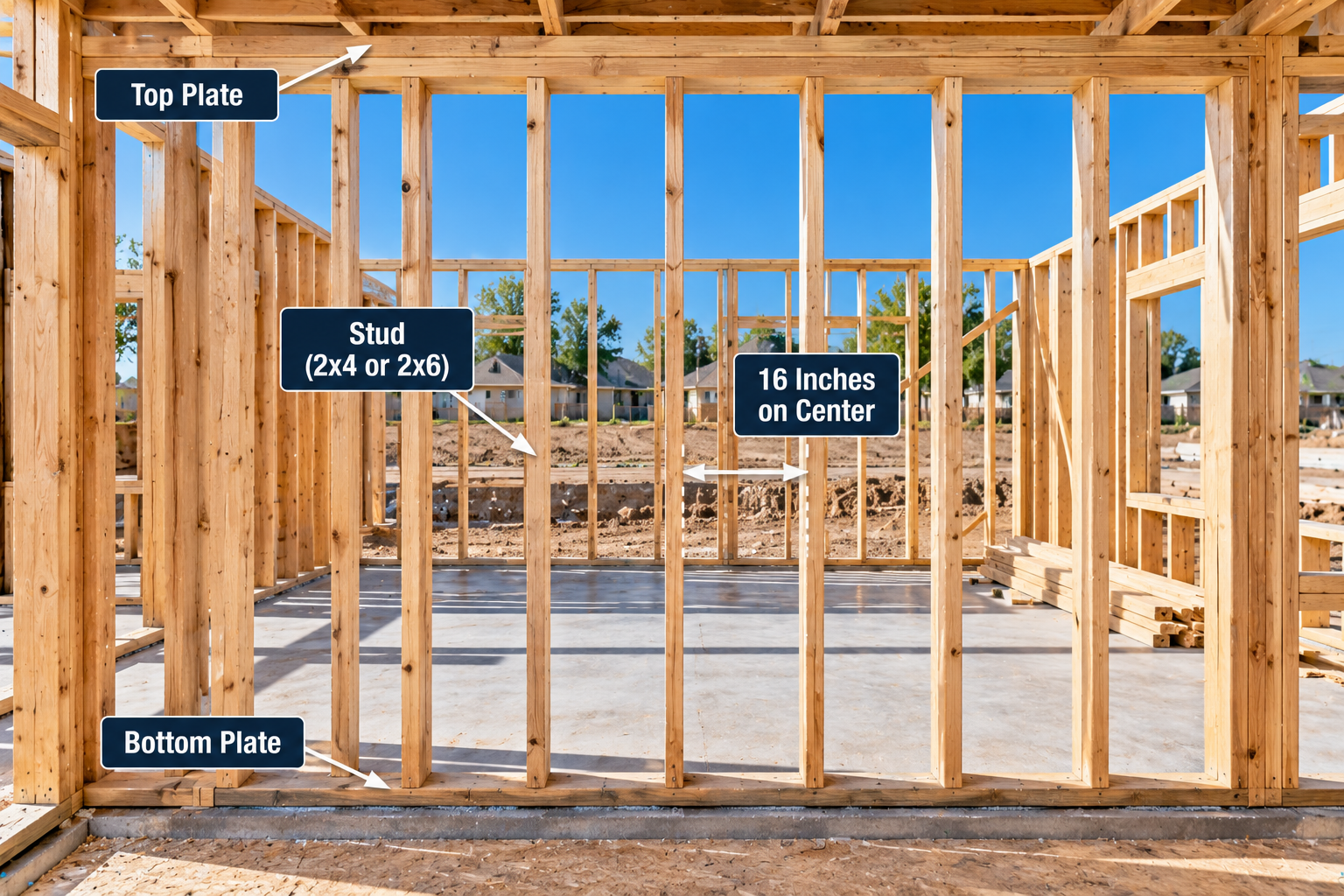

At 16 inches on center, the centerline of one stud is 16 inches from the centerline of the next. With standard 1.5-inch-thick studs, the nominal clear space is 16 – 1.5 = 14.5 inches before construction tolerances, blocking, services, insulation installation or other details. Sixteen inches equals approximately 406 mm.

Center-to-Center vs. Clear Stud Spacing

Clear-cavity values are geometric calculations for nominal 1.5-inch-thick framing. They are not guaranteed finished cavity measurements.

For tall exterior bearing walls, consult the applicable 2024 IRC R602.3.1 exceptions and the adopted code text. Those provisions use specified limits for wind, snow, tributary loading and other conditions. Where the prescriptive requirements do not apply, use an engineered wall design.

Table R602.3(5) also contains entries for less-common 3×4 and 2×5 configurations. Use the adopted table directly when those members are proposed. IRC R602.5 also contains a separate limited provision for certain 2×3 interior nonbearing partitions at 24 inches on center; do not confuse that special partition provision with exterior or bearing-wall rules.

For the habitable-attic conditions addressed in the IRC table footnotes, 2×4 limitations can be more restrictive. The specified 2×4-supported habitable-attic case is limited to a 32-foot roof span; larger spans require 2×6 studs or an engineered design under the applicable provisions.

For nominal and actual dimensions across lumber sizes, use the Lumber Size Chart.

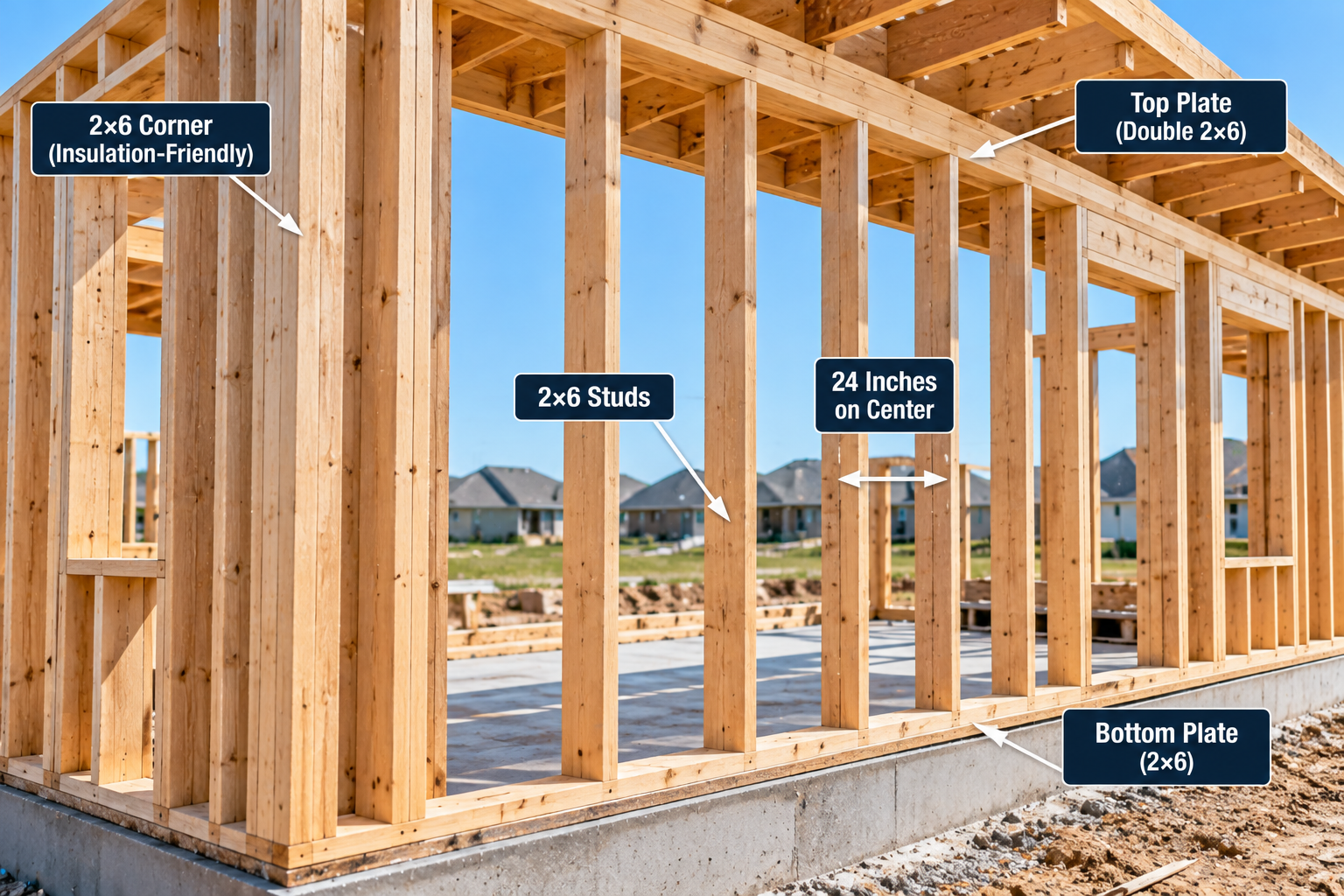

2×6 walls are often used for deeper insulation cavities, exterior-wall assemblies and qualifying advanced framing. Exterior insulation, moisture control, cladding support, wall bracing and finish compatibility remain part of the final wall design.

Exterior vs. Interior and Multi-Story Walls

Exterior walls can carry gravity loads and resist wind while enclosing insulation and cladding. Interior bearing walls can support floors and roof loads. Nonbearing partitions have different table conditions. In multi-story homes, lower walls may support more floors, so a roof-only upper wall must not be used as the model for a lower wall carrying one or two additional floors.

For related horizontal members, see the Floor Joist Span Chart, Roof Rafter Span Chart and Ceiling Joist Span Chart.

Under specified 2024 IRC Table R602.3(3) wind-pressure conditions, the 3/8-inch nominal wood-structural-panel entry is limited to 16-inch stud spacing, while certain 7/16-inch, 24/16-rated panel configurations allow up to 24 inches on center. The complete table condition, including fastening and wind criteria, controls.

Keep roof-panel selection separate from wall sheathing. See the Roof Sheathing Thickness Chart for roof-specific panel guidance and the Nail Size Chart for fastener dimensions.

Use the applicable IRC Chapter 7 provisions and the relevant manufacturer instructions for gypsum board and cladding. Confirm drywall fasteners with the Drywall Screw Size Chart and framing fasteners with the Wood Screw Size Chart.

• 2×6 studs can provide a deeper cavity than 2×4 walls.
• 24-inch modular framing can reduce the number of regular studs in an equal wall length.
• Aligned framing can create a more direct load path where the structural design permits it.
• Fewer regular studs can reduce framing fraction and thermal bridging, while whole-wall performance still depends on the full assembly.
• Headers, corners, intersections, opening details, sheathing, bracing and attachments must still meet the approved design.

DOE Building America guidance treats this as a qualifying approach that still requires compliance with applicable structural and local requirements. For framing quantity planning, use the Framing Calculator.

For header-specific span design, use the Header Span Chart and the Door Header Size Calculator.

Keep required edge clearance and use protective nail plates where plumbing, electrical or mechanical work is close to the stud face. Confirm the full adopted IRC R602.6 text before cutting framing.

1. Establish the wall length, direction, opening locations and structural drawings.
2. Identify the approved spacing module and verify whether the wall is bearing or nonbearing.
3. Mark stud centerlines and account for the actual 1.5-inch stud thickness.
4. For a 16-inch module, use the carpenter’s layout convention so the first stud centerline aligns with the intended module. Where appropriate, offset the initial edge mark by half the stud thickness.
5. Coordinate panel edges, blocking, braced wall panels and fastening requirements before framing.

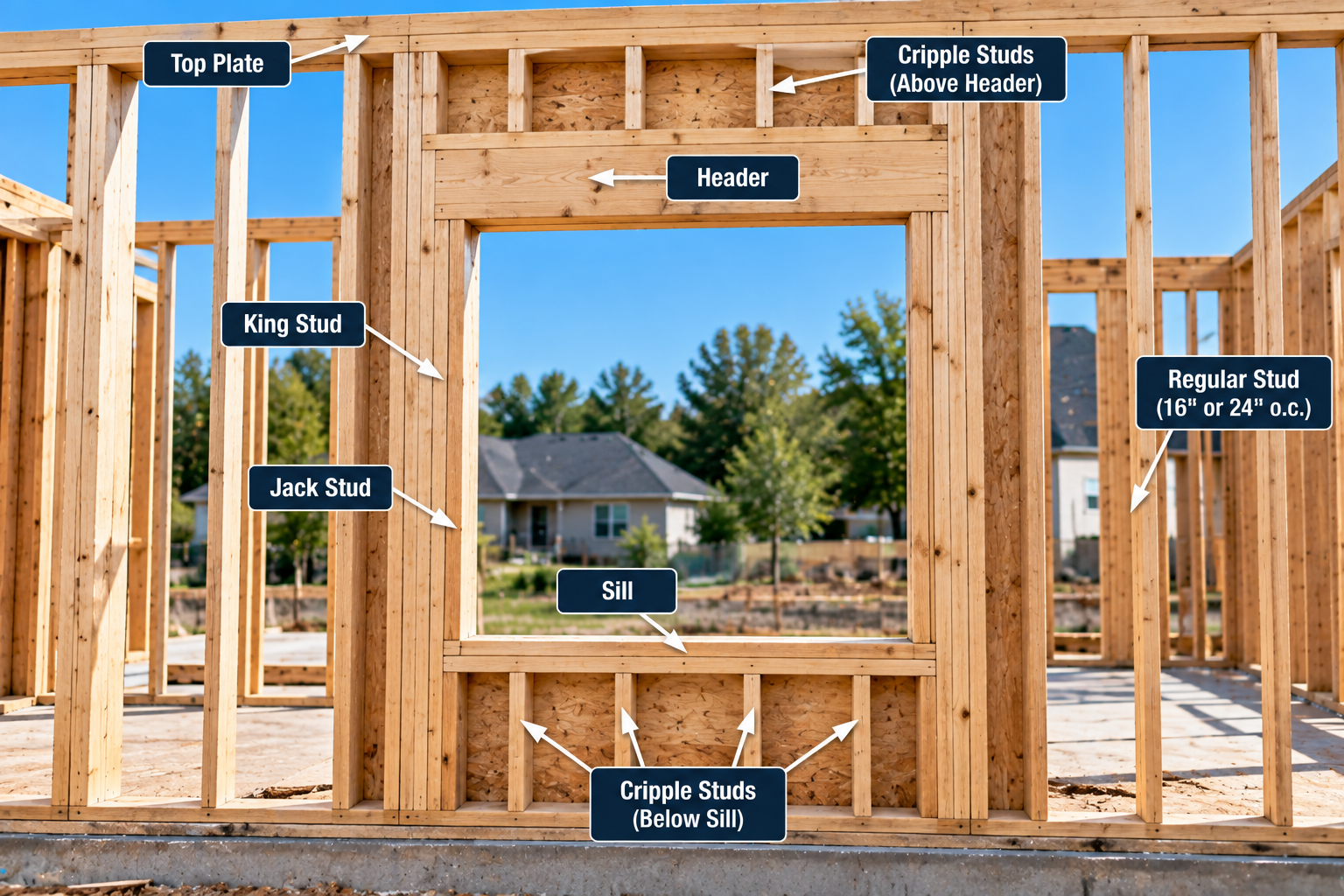

6. Lay out king studs, jack studs, headers, sills and cripple studs around every opening.
7. Add required corner and partition-intersection backing while preserving insulation and finish requirements.
8. Verify top-plate/bottom-plate alignment, connections, local code and approved plans before assembly.

Counts assume regular positions, a stud at each end, and no openings or extra framing. For 19.2-inch spacing, actual layout and panel coordination require special attention.

Use the Lumber Calculator for quantity planning and the Board Foot Calculator for lumber-volume conversions.

1. Identify the locally adopted building code and project jurisdiction.
2. Determine whether the wall is exterior/interior and bearing/nonbearing.
3. Identify the roof and floor loads transferred through the wall.
4. Determine laterally unsupported wall height and required lateral support.
5. Identify the actual stud size, lumber grade and species.
6. Use the applicable IRC stud table, including all footnotes and exceptions.
7. Check braced-wall, sheathing, fastening, wind and seismic conditions.
8. Verify drywall, cladding, fire-rated and manufacturer assembly requirements.
9. Evaluate advanced framing only when the complete assembly qualifies.
10. Follow approved structural drawings or engineering when prescriptive rules do not apply.

For wind-demand context, see the Wind Load Calculator.
