ASTM A325 Bolt Size Chart: Dimensions, Holes & Strength

Heavy-hex head sizes, UNC threads, thread length, bolt hole sizes, length selection, minimum pretension and strength basics for ASTM F3125 Grade A325 structural bolts.

ASTM F3125/F3125M-26RCSC 2025 holes and pretension1/2 to 1-1/2 in.Worked length exampleLast updated: October 2026

Key Facts

  • ASTM A325 is now ASTM F3125 Grade A325. It is a 120 ksi class heavy-hex structural bolt furnished from 1/2 to 1-1/2 in.
  • A 3/4 in. A325 bolt has a 1-1/4 in. head across flats, 3/4-10 UNC threads, a 15/32 in. head height and a 1-3/8 in. standard thread length.
  • Standard holes are 13/16 in. for a 3/4 in. bolt and 1-1/8 in. for a 1 in. bolt. Minimum pretension for a 3/4 in. bolt is 28 kips, which is tension, not torque.
  • This page is a dimensional reference. See the Bolt Grade Chart for general grades and the Structural Bolt Size Chart for the wider structural family.

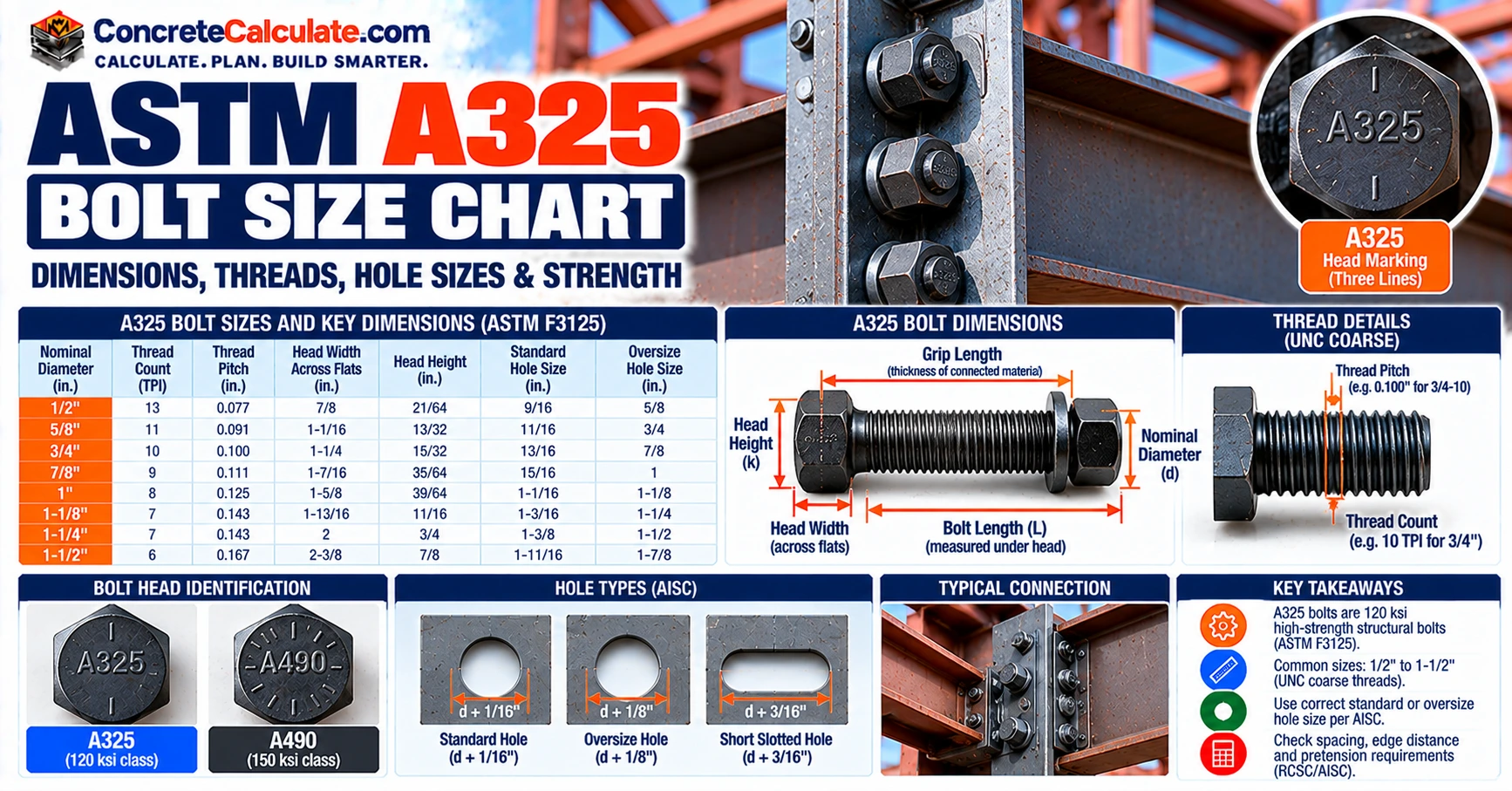

A325 Bolt Size Chart: Quick Reference

Heavy-hex dimensions, UNC threads and thread length for all nine standard sizes.

How to Read This Chart

Read across a row from nominal diameter to the standard UNC thread, the heavy-hex head width across flats (the wrench or socket size), the nominal head height and the nominal structural thread length. A 3/4 in. A325 bolt has a 1-1/4 in. head because heavy-hex structural heads are wider than ordinary hex heads. Head width is a wrench dimension. It is not the bolt size.

ASTM F3125 Grade A325 heavy-hex structural bolt nominal dimensions per ASME B18.2.6 and RCSC Commentary Table C-2.1. UNC thread designations are the standard coarse series.
Nominal diameterUNC threadHead across flatsNominal head heightNominal thread length
1/2 in.1/2-13 UNC7/8 in.5/16 in.1 in.
5/8 in.5/8-11 UNC1-1/16 in.25/64 in.1-1/4 in.
3/4 in.3/4-10 UNC1-1/4 in.15/32 in.1-3/8 in.
7/8 in.7/8-9 UNC1-7/16 in.35/64 in.1-1/2 in.
1 in.1-8 UNC1-5/8 in.39/64 in.1-3/4 in.
1-1/8 in.1-1/8-7 UNC1-13/16 in.11/16 in.2 in.
1-1/4 in.1-1/4-7 UNC2 in.25/32 in.2 in.
1-3/8 in.1-3/8-6 UNC2-3/16 in.27/32 in.2-1/4 in.
1-1/2 in.1-1/2-6 UNC2-3/8 in.15/16 in.2-1/4 in.
Checked against ASME B18.2.6 manufacturer data and RCSC commentary

Chart Notes

Head width is not nominal bolt diameter. Head height is a nominal reference, and actual manufactured values have tolerances. Thread length and overall bolt length are different dimensions. Special threading configurations must be identified separately. This standard sizing does not establish structural connection capacity.

ASTM F3125 Grade A325 3/4 inch heavy-hex bolt dimensionsSide elevation and head-end view of a 3/4 inch Grade A325 heavy-hex bolt. Nominal diameter 3/4 inch, head width across flats 1-1/4 inches, head height 15/32 inch, nominal thread length 1-3/8 inches. Under-head length L is a separate dimension that excludes the head.H = 15/32 in.Fd = 3/4 in.L = under-head length (excludes head)LT = 1-3/8 in.Unthreaded bodyThreaded portionEnd of boltThread transitionF = 1-1/4 in.Head-end viewNominal values from ASME B18.2.6. Drawn at 80 px = 1 in.; tolerances apply.F = head width across flats. Diameter, wrench size, head height, thread length and L are different dimensions.
ASTM F3125 Grade A325 heavy-hex structural bolt dimensions showing nominal diameter, head width, bolt length and threaded portion.

ASTM A325 Heavy-Hex Bolt Dimensions

Nine inch-series diameters from 1/2 to 1-1/2 in. are standard. For general inch bolt dimensions, see the US Bolt Sizes Chart. For the full family of structural bolt grades, see the Structural Bolt Size Chart.

Head Size, UNC Threads and Thread Length

The heavy-hex head is 1/8 in. wider across flats than a regular hex head of the same diameter, and the structural thread length is shorter than a general-purpose bolt, so the unthreaded shank stays in the shear plane. See the thread length section below.

What Is an ASTM A325 Structural Bolt?

A high-strength heavy-hex bolt made for steel connections.

An ASTM A325 structural bolt is a high-strength heavy-hex bolt for steel-to-steel connections. It is made from quenched and tempered medium-carbon or alloy steel, supplied with matching heavy-hex nuts and hardened washers, and installed by a controlled method under the RCSC specification. The grade is marked on the head.

Structural Applications

A325 bolts connect beams, columns, braces, gussets and splice plates in buildings, industrial structures and bridges. They are used in bearing-type joints and in pretensioned or slip-critical joints.

Heavy-Hex Configuration

The wider head gives a larger bearing surface for the clamping load. Do not confuse an A325 bolt with an ordinary hex cap screw, whose head and thread length differ, or with a foundation anchor rod, which anchors steel to concrete. See the Anchor Bolt Grade Chart and Anchor Bolt Size Chart for anchor rods.

Different standards cover different products.
FastenerTypical standardUse
A325 structural boltASTM F3125 Grade A325Steel-to-steel structural joints
Hex cap screw or machine boltASME B18.2.1 or SAE J429General fastening
Foundation anchor rodASTM F1554Anchoring steel to concrete

ASTM A325 vs. ASTM F3125 Grade A325

The old name, the new standard, and what changed for larger bolts.

The standalone ASTM A325 specification was withdrawn in 2016 and consolidated into ASTM F3125/F3125M. The familiar “A325” designation survives as Grade A325 inside F3125, so the correct current wording is “ASTM F3125 Grade A325.” The current edition is F3125/F3125M-26, which ASTM lists as active as of July 31, 2026. Your project documents may reference an earlier edition, so always follow the edition adopted by the contract.

The older tiered strength values for larger bolts are historical. Do not apply them to current F3125 Grade A325 without qualification.
TopicHistorical ASTM A325ASTM F3125 Grade A325
DesignationStandalone ASTM A325Grade A325 in F3125/F3125M
Minimum tensile, 1/2 to 1 in.120 ksi120 ksi
Minimum tensile, 1-1/8 to 1-1/2 in.105 ksi120 ksi
Minimum yield, 1-1/8 to 1-1/2 in.81 ksi92 ksi
Inch and metricSeparate standards (A325, A325M)One specification, inch and SI as separate systems

Historical ASTM A325

Before consolidation, A325 bolts above 1 in. had lower minimum strengths than smaller sizes. Old drawings and old spreadsheets may still reflect that.

Current ASTM F3125/F3125M

F3125 sets a uniform 120 ksi minimum tensile strength for Grade A325 in all sizes from 1/2 to 1-1/2 in. The inch and SI products are separate, and direct conversion between them is discouraged by RCSC.

Specification and Strength Changes

The full F3125 text governs chemistry, mechanical properties, manufacture and marking. It is paid content, so use the ASTM document, or the manufacturer’s certification, when a requirement matters.

A325 Bolt Diameter Chart

Fractional, decimal and metric values for 1/2 to 1-1/2 in.

The nine standard inch diameters run from 1/2 to 1-1/2 in. They are specification sizes, not a promise that every length and finish is stocked by every supplier. Converting an inch diameter to millimeters does not make it an interchangeable metric product.

Fractional and Decimal Diameters

Conversions use exactly 25.4 mm per inch, rounded to two decimals. Maximum body diameter is from ASME B18.2.6.
Nominal sizeDecimal diameter (in.)Metric conversion (mm)Body diameter, maximum (in.)
1/2 in.0.50012.700.515
5/8 in.0.62515.880.642
3/4 in.0.75019.050.768
7/8 in.0.87522.230.895
1 in.1.00025.401.022
1-1/8 in.1.12528.581.149
1-1/4 in.1.25031.751.277
1-3/8 in.1.37534.931.404
1-1/2 in.1.50038.101.531
Metric values calculated

Inch-to-Metric Diameter

🧮 Conversion

dmm = 25.4 × din

Example: 3/4 in. = 25.4 × 0.750 = 19.05 mm. The table gives conversions only. It does not give equivalent metric bolt designations, and for general metric references see the Bolt Diameter Chart.

Nominal vs. Actual Diameter

Nominal diameter is a designation. A real bolt body is measured within the tolerance set by ASME B18.2.6, and the maximum body diameter in the table is slightly larger than the nominal size.

A325 Heavy-Hex Head Dimensions

Why a 3/4 in. bolt needs a 1-1/4 in. wrench.

ASME B18.2.6 gives nominal values and tolerances for the heavy-hex head. A 3/4 in. structural bolt has a nominal head width of 1-1/4 in., so the wrench or socket is larger than the shank. Heavy hex differs from standard hex because the head is wider across flats than a standard hex head of the same bolt diameter.

Head dimensions per ASME B18.2.6 (2011 values published by a bolt manufacturer). Check the governing ASME edition before asserting current tolerance compliance.
BoltAcross flats, basic (in.)Across flats, max / min (in.)Across corners, max / min (in.)Head height, basic (in.)Head height, max / min (in.)
1/2 in.7/80.875 / 0.8501.010 / 0.9695/160.323 / 0.302
5/8 in.1-1/161.062 / 1.0311.227 / 1.17525/640.403 / 0.378
3/4 in.1-1/41.250 / 1.2121.443 / 1.38315/320.483 / 0.455
7/8 in.1-7/161.438 / 1.3941.660 / 1.58935/640.563 / 0.531
1 in.1-5/81.625 / 1.5751.876 / 1.79639/640.627 / 0.591
1-1/8 in.1-13/161.812 / 1.7562.093 / 2.00211/160.718 / 0.658
1-1/4 in.22.000 / 1.9382.309 / 2.20925/320.813 / 0.749
1-3/8 in.2-3/162.188 / 2.1192.526 / 2.41627/320.878 / 0.810
1-1/2 in.2-3/82.375 / 2.3002.742 / 2.62215/160.974 / 0.902

Width Across Flats

This is the wrench size. For a 1 in. A325 bolt, the head is 1-5/8 in. across flats, so a 1-5/8 in. socket or wrench fits. See the US Bolt Sizes Chart for general bolts.

Width Across Corners

The corner-to-corner width matters for tool clearance and is larger than the across-flats value.

Head Height and Tolerances

Head height is a nominal reference, and actual heads fall between the minimum and maximum values.

A325 Bolt Thread Size and Pitch Chart

UNC coarse threads, TPI and pitch.

A325 structural bolts use the Unified National Coarse (UNC) thread series unless the order says otherwise. The number after the hyphen is threads per inch (TPI).

UNC Threads per Inch

Pitch is calculated as 1/TPI. Tensile stress areas are the standard values at the 120 ksi minimum tensile level.
BoltUNC threadThreads per inchPitch (in.)Pitch (mm)Tensile stress area (in²)
1/2 in.1/2-13130.07691.950.142
5/8 in.5/8-11110.09092.310.226
3/4 in.3/4-10100.10002.540.334
7/8 in.7/8-990.11112.820.462
1 in.1-880.12503.170.606
1-1/8 in.1-1/8-770.14293.630.763
1-1/4 in.1-1/4-770.14293.630.969
1-3/8 in.1-3/8-660.16674.231.155
1-1/2 in.1-1/2-660.16674.231.405
Pitch calculated

Thread Pitch Formula

🧮 Pitch

P = 1 / TPI

3/4-10 UNC example: P = 1/10 = 0.100 in. = 0.100 × 25.4 = 2.54 mm. For thread identification, see the UNC Thread Chart, Thread Size Chart and Thread Pitch Chart.

UNC Is Not Metric

A 3/4-10 UNC bolt is not interchangeable with an M20 metric thread. The M20 coarse pitch is 2.5 mm and the diameter is 20 mm, which is close to but not the same as 19.05 mm and 2.54 mm. Using metric nuts on UNC bolts is a mistake.

A325 Bolt Thread Length

Shorter than a general-purpose heavy-hex bolt, by design.

Structural bolts have shorter thread lengths than general-purpose heavy-hex bolts. The standard thread length is the nominal length of thread measured from the end of the bolt, and it keeps the unthreaded shank in the shear plane when the grip is controlled. Thread length and overall bolt length are different dimensions.

Structural values per ASME B18.2.6 and RCSC Commentary Table C-2.1. General values from ASME B18.2.1 for bolts up to 6 in. long. Do not use the general formula for F3125 structural bolts.
BoltStructural thread length (in.)General heavy hex, 6 in. or less (2D + 1/4) (in.)
1/2 in.11.25
5/8 in.1-1/41.50
3/4 in.1-3/81.75
7/8 in.1-1/22.00
1 in.1-3/42.25
1-1/8 in.22.50
1-1/4 in.22.75
1-3/8 in.2-1/43.00
1-1/2 in.2-1/43.25
General-bolt column calculated

Standard Thread Length

For a 3/4 in. A325 bolt the nominal thread length is 1-3/8 in. The bolt can be any of many lengths, so a 3/4 × 3-1/4 bolt has 1-3/8 in. of thread and the rest is unthreaded body.

Partially vs. Fully Threaded Bolts

F3125 permits a fully threaded A325 bolt under a supplement, limited to lengths up to four bolt diameters, and the bolt is marked A325T. A “S” marking identifies altered thread length or head dimensions that still comply, and an “M” marking denotes the metric version. Special threading configurations must be identified separately and are not the standard structural bolt.

Thread Transition and Shear Planes

Between the full unthreaded body and the full threads is a transition. Whether the shear plane passes through threads (N) or the plain body (X) changes shear strength, so the thread position matters when choosing length.

A325 Bolt Length and Grip Selection

Grip, washers and allowances decide the length.

Required bolt length is the grip plus the thickness of any washers plus a tabulated allowance for the nut and thread projection. Nominal bolt length is measured under the head, so it excludes head height.

🧮 Required Bolt Length

Lrequired = G + tcomponents + ad

Variables: G = grip (total thickness of connected material, excluding washers), tcomponents = washer thickness (add 5/32 in. per F436 washer and 5/16 in. per beveled washer), ad = allowance for the bolt diameter from the table. Round the result up to the next 1/4 in. (next 1/2 in. when over 6 in.).

Allowance excludes washers, which are added separately.
Bolt diameterAdded length ad (in.)
1/2 in.11/16
5/8 in.7/8
3/4 in.1
7/8 in.1-1/8
1 in.1-1/4
1-1/8 in.1-1/2
1-1/4 in.1-5/8
1-3/8 in.1-3/4
1-1/2 in.1-7/8
RCSC Commentary Table C-2.2
1

Selecting a 3/4 in. A325 Bolt

Given: Total steel grip G = 2.00 in., one ordinary F436 washer (5/32 in.), 3/4 in. bolt with allowance 1 in.
1
Add: L = 2 + 5/32 + 1 = 3.15625 in.
2
Round up to the next 1/4 in.: 3-1/4 in.
Result: preliminary selection 3/4 × 3-1/4 in.

What it means: Verify available lengths, thread engagement, bolt configuration, installation method and project requirements before specifying the assembly. The bolt end must be flush with or beyond the nut face.

A325 bolt grip and length selectionSchematic cross-section of a heavy-hex bolt through two steel plates with one washer and a nut. Grip G is the combined thickness of the two plates and excludes the washer. The required bolt length is the grip plus washer thickness plus the added allowance for the bolt diameter.t1t2Grip G = t1 + t2 (no washer)Washer twNutHeadBolt end flush withor beyond the nutBolt length L (under head to end)L(required) = G + Σ t(components) + a(d)Schematic, not to scale. a(d) comes from RCSC Table C-2.2. Round up to the next 1/4 in.
A325 structural bolt length selection depends on steel grip, washer components, nut engagement and applicable RCSC allowances.

Measuring Bolt Length and Tolerance

Measure under the head to the end of the bolt. Structural bolts can be made shorter than nominal by the amounts below, so allow for it when selecting.

Tolerances in inches, from ASME B18.2.6 as published by a bolt manufacturer.
Nominal length1/2 in.5/8 in.3/4 to 1 in.1-1/8 to 1-1/2 in.
Up to 6 in.-0.12-0.12-0.19-0.25
Over 6 in.-0.19-0.25-0.25-0.25

A325 Type 1 vs. Type 3

Material classification, not a size difference.

Type 1 and Type 3 are material classifications. They share the same heavy-hex dimensions, thread system and Group 120 strength level.

The Type 3 head marking is an underlined grade mark.
PropertyType 1Type 3
MaterialMedium-carbon or alloy steelWeathering steel chemistry
Nominal geometryStandard A325 dimensionsStandard A325 dimensions
Strength groupGroup 120Group 120
Head markingGrade markGrade mark with an underline
CorrosionNeeds a protective coating in exposed useForms a protective patina in suitable wet-dry exposure
Typical finishPlain, hot-dip or mechanically galvanized, or zinc-flake coatingSupplied plain

Weathering Steel and Corrosion Considerations

Type 3 is neither stainless steel nor simply galvanized Type 1 steel. It suits outdoor exposure with alternating wet and dry conditions, and it may not form a stable patina in continuously damp or marine environments. Matching nuts and washers are Type 3 as well.

A325 Mechanical Properties

Tensile and yield strength, ductility and hardness.

F3125 sets the mechanical requirements for Grade A325. The values below come from the tension and hardness tables of the specification text reviewed.

Values from ASTM F3125 (edition reviewed: 2021). Confirm against F3125/F3125M-26 and the manufacturer certification for your project.
PropertyRequirement
Minimum tensile strength120 ksi
Minimum yield strength92 ksi
Elongation in 4D, minimum14 percent
Reduction of area, minimum35 percent
Hardness, Brinell253 to 319 HB
Hardness, Rockwell C25 to 34 HRC

Material Strength Is Not Connection Strength

The 120 ksi minimum tensile strength is a material specification value. It is not the allowable load of a structural connection. Bolt shear, bolt tension, pretension and complete connection capacity are different quantities and are covered below.

A325 Bolt Hole Size Chart

Standard, oversize and slotted holes from RCSC Table 3.1.

RCSC 2025 Table 3.1 lists nominal bolt hole dimensions. Standard holes are 1/16 in. larger than the bolt through 7/8 in., and 1/8 in. larger from 1 in. up. Oversize holes and slots follow the formulas shown for 1-1/8 in. and larger bolts. Do not confuse these with concrete anchor drill-bit sizes or general machine-bolt clearance holes. For those, see the Bolt Hole Size Chart and Clearance Hole Size Chart.

Nominal dimensions from RCSC 2025 Table 3.1. For 1-1/8 in. and larger: standard d + 1/8, oversized d + 5/16, short slot (d + 1/8) × (d + 3/8), long slot (d + 1/8) × 2.5d (calculated).
Bolt diameterStandard holeOversized holeShort slot (width × length)Long slot (width × length)
1/2 in.9/16 in.5/8 in.9/16 × 11/16 in.9/16 × 1-1/4 in.
5/8 in.11/16 in.13/16 in.11/16 × 7/8 in.11/16 × 1-9/16 in.
3/4 in.13/16 in.15/16 in.13/16 × 1 in.13/16 × 1-7/8 in.
7/8 in.15/16 in.1-1/16 in.15/16 × 1-1/8 in.15/16 × 2-3/16 in.
1 in.1-1/8 in.1-1/4 in.1-1/8 × 1-5/16 in.1-1/8 × 2-1/2 in.
1-1/8 in.1-1/4 in.1-7/16 in.1-1/4 × 1-1/2 in.1-1/4 × 2-13/16 in.
1-1/4 in.1-3/8 in.1-9/16 in.1-3/8 × 1-5/8 in.1-3/8 × 3-1/8 in.
1-3/8 in.1-1/2 in.1-11/16 in.1-1/2 × 1-3/4 in.1-1/2 × 3-7/16 in.
1-1/2 in.1-5/8 in.1-13/16 in.1-5/8 × 1-7/8 in.1-5/8 × 3-3/4 in.
Checked against RCSC Table 3.1 1-1/8 in. and larger calculated from table formulas
3/4 inch A325 bolt centered in a standard 13/16 inch holeTop view of a 3/4 inch bolt centered in a 13/16 inch standard hole. The nominal diametral difference is 1/16 inch and the ideal radial clearance is 1/32 inch when the bolt is perfectly concentric.db = 3/4 in.ideal radial clearancecr = 1/32 in.Bolt in a standard holeBolt diameter db = 3/4 in. (0.750)Hole diameter dh = 13/16 in. (0.8125)Difference: dh − db = 1/16 in.Radial clearance: cr = 1/16 / 2 = 1/32 in.Hole value: RCSC 2025 Table 3.1.Clearance is an ideal concentricgeometry result, not a tolerance.Drawn at 240 px = 1 in.
Nominal diameter and clearance relationship for a 3/4 in. A325 structural bolt in a standard steel hole.

Standard Holes

The default hole. The nominal diametral difference for a 3/4 in. bolt is 1/16 in., which is not the radial clearance on each side. The ideal radial clearance is 1/32 in.

Oversized Holes

Larger round holes used only where the joint type and design permit. They are not allowed in every connection.

Short and Long Slots

Slots allow adjustment. The slot direction, which plies may be slotted, and the washer requirements depend on RCSC and the connection design.

2

Hole Clearance Example

Given: 3/4 in. bolt, standard hole of 13/16 in.
1
Diametral difference: Δd = 13/16 − 3/4 = 1/16 in.
2
Ideal radial clearance: cr = (1/16) / 2 = 1/32 in.
Result: 1/16 in. diametral and 1/32 in. radial (ideal).

What it means: Radial clearance is a concentric geometry result, not a manufacturing tolerance.

A325 Bolt Spacing and Edge Distance

AISC minimums and why diameter alone is not enough.

Bolt diameter alone does not set the hole layout. AISC requires a minimum center-to-center spacing of 2⅔ bolt diameters and prefers 3d. Edge distance is measured from the center of a hole to the edge of the connected part, and end distance is the same measurement in the direction of force. Plate thickness, bearing and tearout also decide the layout.

Spacing calculated from the AISC rule. Edge distances from AISC Table J3.4 for standard holes. Oversize and slotted holes add an increment. Check your adopted edition.
BoltMinimum spacing 2⅔dPreferred spacing 3dMin. edge at sheared edge (standard hole)Min. edge at rolled or thermally cut edge
1/2 in.1-1/3 in.1-1/2 in.7/8 in.3/4 in.
5/8 in.1-2/3 in.1-7/8 in.1-1/8 in.7/8 in.
3/4 in.2 in.2-1/4 in.1-1/4 in.1 in.
7/8 in.2-1/3 in.2-5/8 in.1-1/2 in.1-1/8 in.
1 in.2-2/3 in.3 in.1-3/4 in.1-1/4 in.
Spacing calculated Edge distance: AISC Table J3.4

Bolt Spacing

For a 3/4 in. bolt the minimum is 2 in. and the preferred spacing is 2-1/4 in. For layout help see the Bolt Pattern Calculator.

Edge and End Distances

Values depend on hole type and edge condition. Do not create a universal “1.5d” rule.

Structural Design Considerations

A correct bolt diameter does not guarantee adequate plate bearing, tearout or block shear, so those limit states must be checked. Plate dimensions are in the Steel Plate Thickness Chart.

A325 Compatible Nuts

Nut grade and style matter as much as thread size.

A325 bolts use heavy-hex nuts made to ASTM A563, or ASTM A194 Grade 2H as a permitted alternative. RCSC 2025 also permits A194 DH-type nuts as a substitute for A563 Grades C, D and DH. A nut with the right thread size is not automatically a compliant structural nut, so it must be the specified grade and style for the bolt type and finish.

General guidance from manufacturer data. RCSC Table 2.1 and the project specification govern.
A325 boltCompatible nutWasher
Type 1, plainASTM A563 Grade DH, C or A194 2HF436 Type 1
Type 1, galvanizedASTM A563 Grade DH or A194 2H, with the coating system matchedF436 Type 1
Type 3 weatheringASTM A563 Grade DH3 or C3F436 Type 3

Heavy-Hex Nut Dimensions

Heavy-hex nuts have the same width across flats as the heavy-hex bolt head. ASME B18.2.6 lists nominal nut thicknesses such as 39/64 in. for 5/8 in., 47/64 in. for 3/4 in. and 55/64 in. for 7/8 in. See the Nut Size Chart for general nut dimensions.

Thread and Coating Compatibility

The nut thread must match the bolt UNC thread, and a galvanized bolt needs a nut and lubricant combination that suits the coating. Use matched assemblies.

A325 Hardened Washer Requirements

F436 washers and where they go.

ASTM F436/F436M hardened washers are used with A325 assemblies. Washer use and placement depend on the joint, the installation method, the hole type and the component configuration. RCSC Section 6 sets where washers are required, and the 2025 edition adds ASTM F3394 hardened backup and reaction washers for certain installation tools.

Nominal inside and outside diameters from F436 round washer data. Thickness is a range. Confirm against the current F436/F436M table.
Bolt size (in.)Inside diameter (in.)Outside diameter (in.)Thickness (in.)
1/20.5311.0630.097 to 0.177
5/80.6881.3130.122 to 0.177
3/40.8121.4690.122 to 0.177
7/80.9381.7500.136 to 0.177
11.1252.0000.136 to 0.177
1-1/8See ASTM F436See ASTM F436See ASTM F436
1-1/41.3752.5000.136 to 0.177
1-3/81.5312.7500.136 to 0.177
1-1/21.6253.0000.136 to 0.177

Washer Placement and Plate Washers

Washer placement can depend on the installation method, and plate washers or continuous bars are used for some slotted or oversized conditions. See the Washer Size Chart for other washer types.

Special Hole Configurations

Oversized and slotted holes can require washers or plate washers that snug-tightened standard-hole joints do not. Check RCSC for the exact requirement.

A325 Bolt Head Markings

How to tell a genuine structural bolt from ordinary hardware.

Genuine Grade A325 heavy-hex bolts carry specified head markings. These typically show the grade, the manufacturer identification and, for Type 3, an underlined grade mark.

  • Grade marking: the grade designation on the head.
  • Manufacturer identification: the maker mark.
  • Type 1 and Type 3: Type 3 shows an underlined grade mark.
  • Special configurations: T for fully threaded (up to four diameters), S for altered thread or head dimensions, M for metric.
  • Documentation: coating and packaging information and mill or manufacturer test reports.

Markings Are Not Complete Proof

Head markings and appearance alone do not demonstrate every aspect of specification compliance. Test reports, lot traceability and manufacturer certification complete the record.

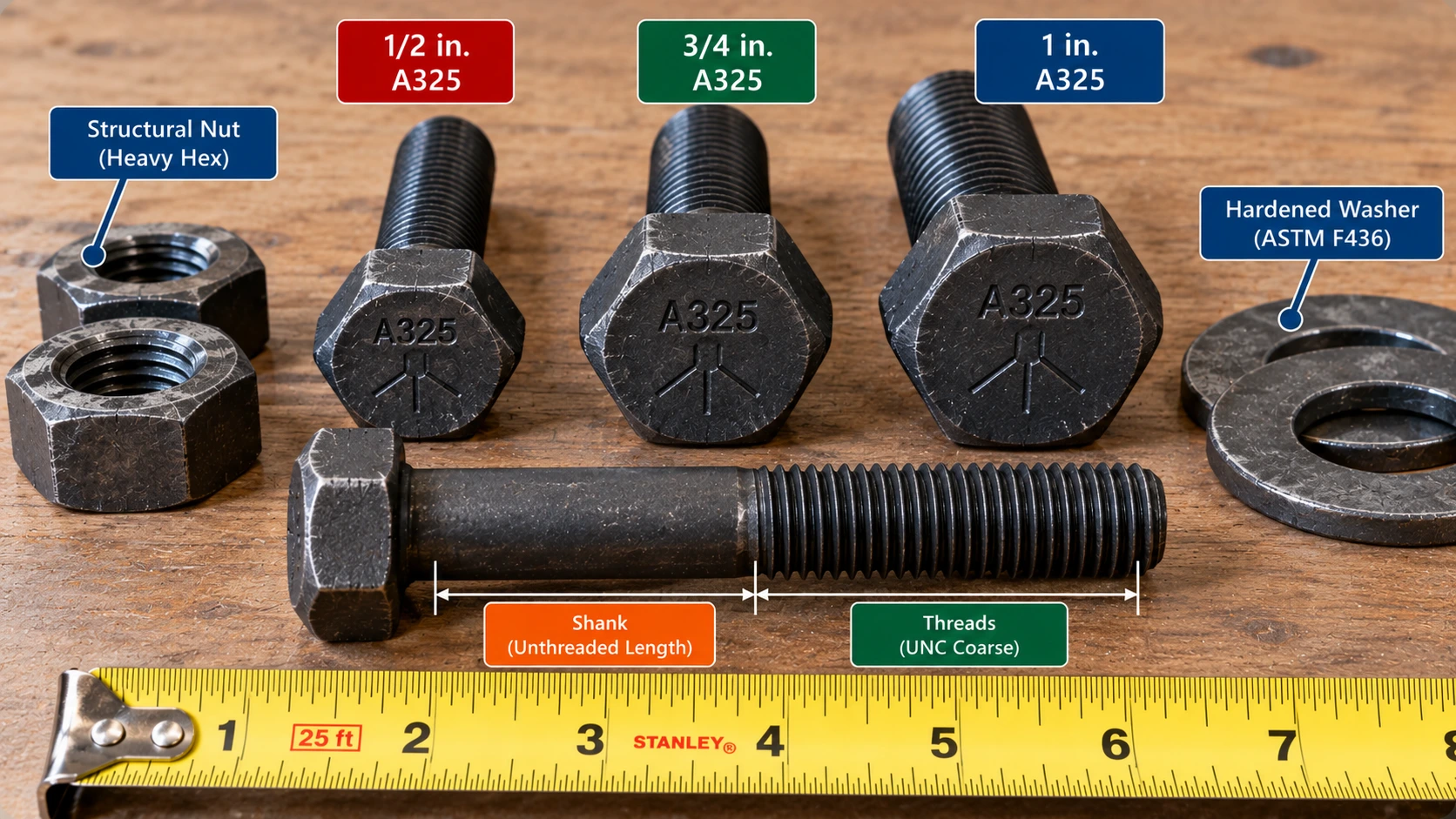

Close-up of A325-style heavy-hex structural bolts showing hexagonal heads, grade markings, smooth shanks and threaded ends beside a ruler.
ASTM F3125 Grade A325 heavy-hex structural bolts are identified by specified head markings and standardized structural-bolt geometry.

A325 Minimum Bolt Pretension

Group 120 values from the 2025 RCSC specification.

Pretension is the tensile force built into a bolt by installation. RCSC 2025 Table 5.2 gives the specified minimum pretension for pretensioned and slip-critical joints. A 3/4 in. Grade A325 bolt has a prescribed minimum pretension of 28 kips in those joints.

Group 120 Pretension Chart

Specified minimum bolt pretension from RCSC 2025 Table 5.2 for pretensioned and slip-critical joints.
Bolt diameterMinimum pretension, Group 120
1/2 in.12 kips
5/8 in.19 kips
3/4 in.28 kips
7/8 in.39 kips
1 in.51 kips
1-1/8 in.64 kips
1-1/4 in.81 kips
1-3/8 in.97 kips
1-1/2 in.118 kips
Checked against RCSC 2025 Table 5.2

Pretension Is Not Torque or Capacity

These are axial tension values. They are not tightening torque, allowable external loads or ultimate failure loads. Older pretension charts for 1-1/8 in. and larger bolts used different numbers, so do not use a legacy chart.

Minimum Pretension vs. Strength

Minimum pretension is a clamping requirement. It is lower than the bolt’s tensile capacity and says nothing about the strength of the connected plates.

Pre-Installation Verification

RCSC Section 7 requires pre-installation verification testing of the bolting assembly, the pretensioning method and the tools. A bolt tension measurement device (BTMD) is used to show the setup can reach the required tension. A nonconforming result has its own procedure.

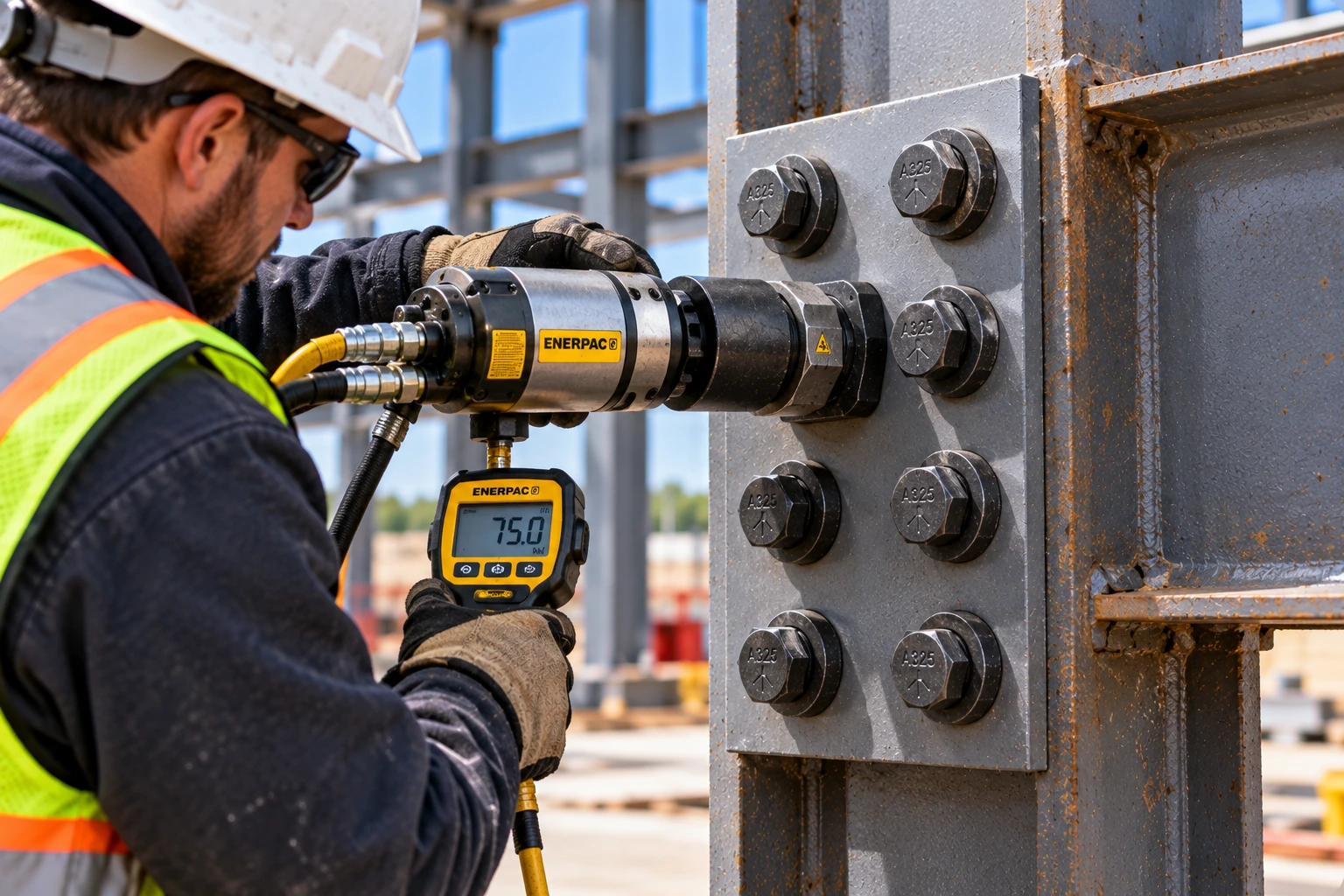

Construction worker using a hydraulic torque wrench on an A325-marked structural bolt assembly at a steel beam-to-column connection.
A construction worker uses a hydraulic torque wrench on a structural steel connection with A325-marked heavy-hex bolts, nuts, and washers. Proper installation and pretensioning procedures are essential for structural connection performance.
TOOLS & EQUIPMENT

Equipment for Your Project

Affiliate disclosure: As an Amazon Associate, ConcreteCalculate earns from qualifying purchases. We may also earn a commission from other affiliate links at no additional cost to you.

A325 Bolt Torque vs. Pretension

Why a torque value does not tell you the bolt tension.

Torque is not a reliable measure of installed pretension, because most of the wrench effort is spent overcoming friction. A simplified relationship is:

🧮 Torque and Clamping Force

T = K × F × d

Variables: T = applied torque, K = approximate nut factor, F = axial clamping force, d = nominal bolt diameter. The nut factor changes with lubrication, coatings, friction and assembly conditions, so no single K applies to every A325 bolt. Do not build a universal A325 torque chart from an assumed K.

Friction and Lubrication

For the same tension, a higher nut factor needs proportionally more torque. Lubricant, galvanizing, thread condition and storage all change K. For general-purpose torque references, see the Bolt Torque Chart and Bolt Torque Calculator. Those are not RCSC pretension procedures.

RCSC Installation Requirements

RCSC 2025 recognizes the turn-of-nut method, the twist-off tension-control bolt method, the direct tension indicator method and the combined method. The calibrated wrench method was withdrawn in the 2025 edition. The combined method still uses a calibrated wrench for the initial torque, followed by a specified rotation, and its minimum torque table was revised.

A325 Structural Joint Types

Snug-tightened, pretensioned and slip-critical.

RCSC defines three joint types. Which one applies is an engineering decision made on the design drawings.

N = threads included in the shear plane. X = threads excluded. SC = slip-critical. These describe the connection, not different A325 grades.
Joint typePrimary conceptTypical design designation
Snug-tightenedPlies in firm contact, with at least the tightness from a few impacts of an impact wrench or the full effort of an ironworker with a spud wrenchN or X (bearing)
PretensionedBolt installed to the specified minimum pretensionN or X (bearing)
Slip-criticalPretensioned with prepared faying surfaces, designed to resist slipSC

Snug-Tightened

The bolts carry shear by bearing against the hole. Snug-tightened bolts are not necessarily free of tension, and the joint is not for all conditions.

Pretensioned

Pretension is required for certain load conditions in RCSC and AISC. Not all A325 joints must be pretensioned.

Slip-Critical

Slip resistance depends on the clamping force and the faying-surface condition, not on bolt size alone. Minimum pretension is not complete joint capacity.

A325 Bolt Shear Strength

Nominal bolt shear, one plane at a time.

Nominal shear strength per bolt per shear plane is the nominal shear stress times the gross bolt area. Using the Group 120 stress values in AISC 360, with threads included in the shear plane (N) the nominal stress is 54 ksi, and with threads excluded (X) it is 68 ksi. Use the current AISC table for your edition and group.

Bolt Area Formula

🧮 Area and Shear

Ab = π d2 / 4Rn = Fnv × Ab

Variables: Ab = gross bolt area (in2), Fnv = nominal shear stress (ksi), Rn = nominal shear strength per shear plane (kips).

Threads Included vs. Excluded

Illustrative values calculated from Fnv × Ab. Not design values for a complete connection.
BoltGross area Ab (in²)Rn threads included (54 ksi), kipsRn threads excluded (68 ksi), kips
1/2 in.0.196310.6013.35
5/8 in.0.306816.5720.86
3/4 in.0.441823.8630.04
7/8 in.0.601332.4740.89
1 in.0.785442.4153.41
1-1/8 in.0.994053.6867.59
1-1/4 in.1.227266.2783.45
1-3/8 in.1.484980.18100.97
1-1/2 in.1.767195.43120.17
Calculated

Worked Shear Example

3

3/4 in. A325 Bolt in Single Shear

Given: 3/4 in. bolt, one shear plane, threads included, Fnv = 54 ksi, LRFD resistance factor φ = 0.75.
1
Area: Ab = (0.75)² π/4 = 0.4418 in2
2
Nominal strength: Rn = 54 × 0.4418 = 23.86 kips
3
Design strength: φRn = 0.75 × 23.86 = 17.90 kips
Result: 23.86 kips nominal and 17.90 kips LRFD for one bolt in one shear plane.

What it means: This is an isolated bolt value. It is not the strength of a complete connection. Bearing, tearout, block shear, net section, long-connection effects and single or double shear all need checking.

A325 Bolt Tensile Strength

Nominal tension, and why 120 ksi is not the design stress.

Nominal tensile strength is the nominal tensile stress times the gross bolt area. For Group 120 bolts the AISC nominal tensile stress is 90 ksi, which is different from the 120 ksi material minimum tensile strength.

Nominal Tensile Resistance

🧮 Nominal Tension

Rn = Fnt × Ab

Variables: Fnt = nominal tensile stress (90 ksi for Group 120), Ab = gross bolt area.

Worked Tension Example

4

3/4 in. A325 Bolt in Tension

Given: 3/4 in. bolt, Fnt = 90 ksi, φ = 0.75.
1
Nominal: Rn = 90 × 0.4418 = 39.76 kips
2
Design: φRn = 0.75 × 39.76 = 29.82 kips
Result: 39.76 kips nominal and 29.82 kips LRFD.

What it means: The 120 ksi material strength is not the design stress Fnt. This bolt value ignores prying action, combined shear and tension, and the strength of the connected material.

Combined Loading Limitations

Many bolts carry shear and tension together. AISC Chapter J requires an interaction check, and prying action can add to bolt tension. Never add a shear capacity and a tension capacity.

A325 vs. A490 Structural Bolts

Group 120 and Group 150 are different products.

A325 and A490 are different grades in the same F3125 specification, and A490 is not an automatic upgrade. They share heavy-hex dimensions, but the strength group, pretension, coatings and compatible components differ.

Mechanical values from ASTM F3125 tables; pretension from RCSC 2025 Table 5.2; coating and nut data from manufacturer technical data.
TopicA325A490
Strength groupGroup 120Group 150
Minimum tensile strength120 ksi150 ksi (maximum 173 ksi)
Minimum yield strength92 ksi130 ksi
Hardness (HRC)25 to 3433 to 38
Heavy-hex dimensionsStandard structural geometrySame geometry
CoatingsPlain, hot-dip or mechanical galvanizing, zinc flake (Type 1)Plain or zinc-flake coating; not hot-dip galvanized (Type 1)
Minimum pretension, 3/4 in.28 kips35 kips
NutsA563 DH, C or A194 2H (Type 1)A563 DH or A194 2H (Type 1)

A490 is not freely interchangeable with A325 even at the same diameter. Do not mix grades without the engineer’s approval. For the broad grade comparison, see the Bolt Grade Chart and the Structural Bolt Size Chart.

A325 vs. SAE Grade 5 and Grade 8

Similar strength numbers, different product standards.

SAE J429 Grade 5 and Grade 8 are automotive-style bolt grades. They can have strength levels similar to A325 and A490, but they are not structural bolt grades. AISC does not accept them as substitutes for A325 and A490.

TopicA325 (F3125)SAE J429 Grade 5 or 8
Product specificationASTM F3125 structural bolts and assembliesSAE J429 mechanical requirements
Head geometryHeavy hex per ASME B18.2.6Regular hex head
Thread lengthShortened structural thread lengthGeneral-purpose thread length
AssemblyMatched nut and washer requirementsNo structural assembly requirement
Inspection and certificationStructural quality assurance and lot testingDifferent QA requirements

Not an Approved Substitute

Do not substitute automotive fastener grades for specified structural bolts. The head, thread length, assembly and certification differ, and the connection design assumes F3125 products.

Galvanized and Weathering A325 Bolts

Plain, coated and weathering-steel assemblies.

A325 bolts can be plain, galvanized or weathering steel, and coating compliance depends on the assembly and the specification.

  • Plain finish: the default, with no corrosion protection beyond the base steel.
  • Hot-dip galvanizing: permitted on Type 1 A325 bolts to ASTM F2329, with a nut and lubricant system suited to the coating.
  • Other coatings: mechanical galvanizing (ASTM B695) and zinc-flake coatings (ASTM F3393) are listed for Type 1.
  • Type 3 weathering steel: supplied plain, with the weathering patina providing protection in suitable exposure.
  • Faying surfaces: slip-critical joints depend on the surface condition under the plies, so coatings there must be qualified.

Coating compliance is assembly- and specification-dependent. Mixing incompatible coatings is a common failure point.

FinishApplies toStandard
Hot-dip galvanizedType 1ASTM F2329
Mechanically galvanizedType 1ASTM B695
Zinc-flake coatingType 1ASTM F3393
PlainType 1 and Type 3None required
Weathering patinaType 3Material chemistry

A325 Bolt Applications

Where heavy-hex structural bolts are used.

A325 bolts are used where steel members connect to each other.

A325 bolts are not universal replacements for ASTM F1554 foundation anchor rods. Welded joints are covered by the Fillet Weld Size Chart.

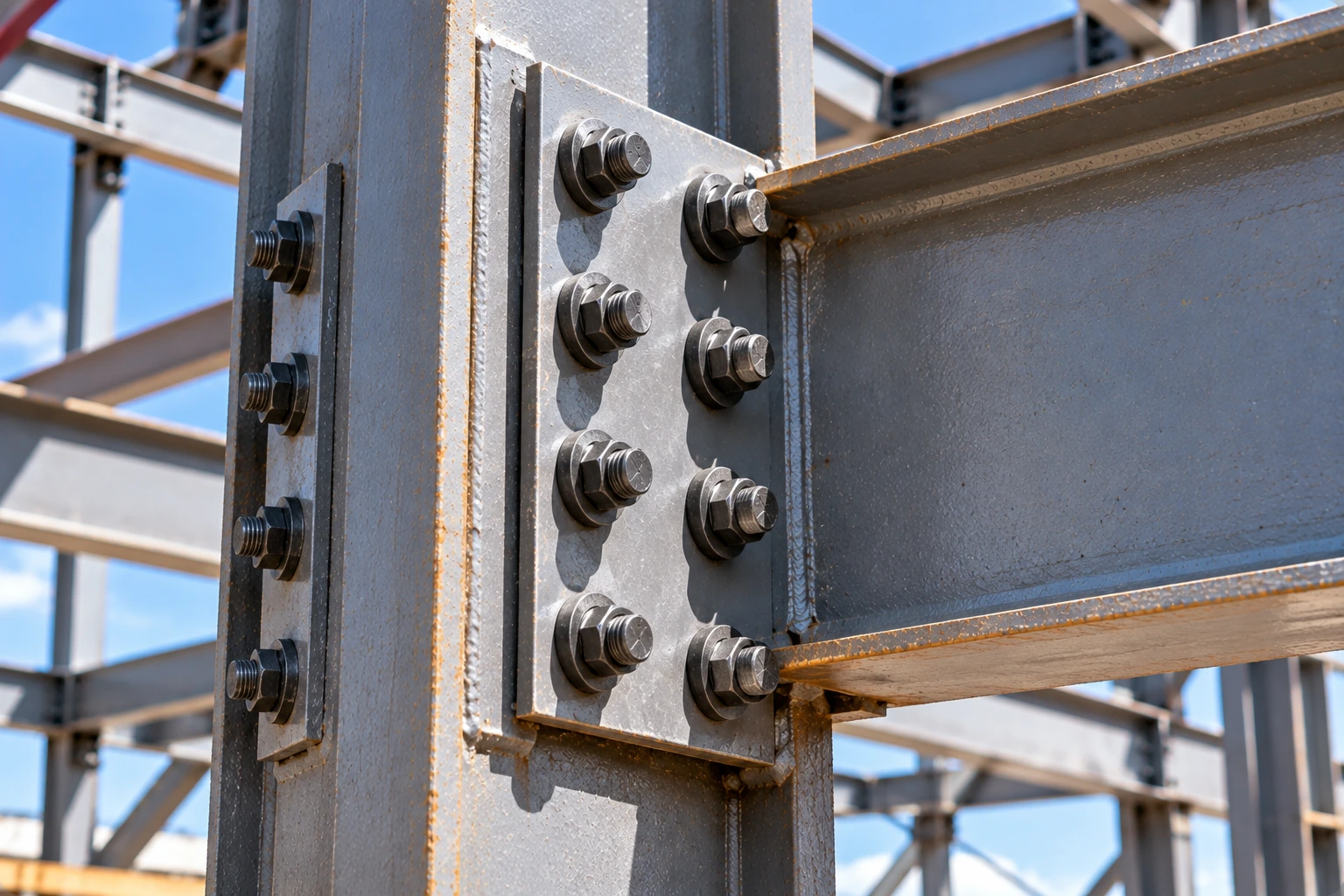

Close-up of a structural steel I-beam connected to a steel column with a bolted connection plate, eight heavy-hex nuts, and washers.
Structural steel beam-to-column connection showing a steel connection plate secured with eight heavy-hex nut-and-washer assemblies. A second bolted plate is visible on the adjacent column face.

How to Measure an A325 Bolt

A practical identification sequence.

Use the following sequence to identify and measure an A325 bolt. Calipers, a thread gauge and the manufacturer documentation all play a part.

  1. Read the bolt head marking. Look for the grade, manufacturer ID and any underline or T, S or M mark.
  2. Measure nominal body diameter. Use calipers on the unthreaded shank, and expect a value slightly under or over the nominal size.
  3. Determine head width across flats. Compare with the chart, for example 1-1/4 in. for a 3/4 in. bolt.
  4. Measure under-head bolt length. Measure from under the head to the end, excluding the head.
  5. Identify thread pitch. A thread gauge should show UNC pitch, for example 10 TPI for a 3/4 in. bolt.
  6. Check thread length and configuration. Compare with the thread length column.
  7. Verify Type 1 or Type 3 and finish.
  8. Review product documentation. Test reports and manufacturer certification confirm what the head cannot.

For the head size, thread and diameter details, use the chart at the top of this page and the Bolt Diameter Chart.

How to Choose the Correct A325 Bolt Size

Follow the drawings, then check each component.

The diameter comes from the engineered design, not from this chart. The workflow is about reading and checking the specification.

  1. Read the approved structural drawings.
  2. Identify the Grade A325 specification and type called out.
  3. Determine the prescribed diameter.
  4. Confirm required hole geometry from the table above and the drawings.
  5. Check steel grip and bolt length with the length formula.
  6. Select compatible nuts and washers.
  7. Confirm finish and material type.
  8. Identify the joint installation condition (snug-tightened, pretensioned or slip-critical).
  9. Verify product and installation compliance.

Substitution Needs Authorization

Bolt substitution and structural resizing require appropriate engineering authorization. For a broader view of structural bolt selection, see the Structural Bolt Size Chart.

A325 Bolt Installation and Inspection

Methods, verification and reuse.

Install and inspect A325 bolts under the project specification and the RCSC specification. RCSC 2025 made changes to installation and verification procedures.

Before Installation

Store assemblies in protected storage, keep lubrication intact, and match nuts, washers and bolts. Check the lot test reports.

Pretensioning and Verification

Where pretension is specified, use an approved method (turn-of-nut, twist-off tension control, direct tension indicator, or combined method) after pre-installation verification testing. Calibrated-wrench installation is no longer a prescribed method in RCSC 2025.

Inspection and Reuse

Inspection follows the joint type, and nonconforming assemblies need the RCSC remedy. Bolt reuse is restricted and depends on grade, finish and joint type. RCSC Section 2.11 sets the rule, and 2025 added a reuse allowance for plain finish Group 144 bolts, which shows reuse rules differ by grade.

Common A325 Bolt Size Mistakes

The sizing, thread and strength errors that cause the most trouble.

Outdated standards

Referring to old ASTM A325 as the current standalone standard, or using old strength requirements without checking the current edition.

Mixing up dimensions

Confusing bolt diameter with heavy-hex head width, using standard hex-head dimensions, or confusing thread length with bolt length.

Wrong length measurement

Measuring bolt length including the head height, or ignoring nut engagement and washers in length selection.

Wrong nuts and washers

Using metric nuts on UNC bolts, or using nonstructural nuts or washers.

Hole assumptions

Assuming every hole is exactly 1/16 in. larger, or ignoring oversized and slotted-hole restrictions.

Type confusion

Treating Type 3 as stainless steel.

Pretension confusion

Treating pretension as torque, confusing minimum pretension with connection capacity, or assuming all A325 joints must be pretensioned.

Shear plane errors

Ignoring threads in the shear plane.

Coating mismatches

Mixing incompatible coatings or assemblies.

Grade substitution

Assuming A325 and A490 can be freely substituted.

Ignoring connected material

Ignoring plate bearing, tearout and block shear.

Using the wrong project standard

Using incorrect or outdated project standards.

A325 Chart Limitations and Structural Safety

Reference dimensions are not a connection design.

Dimensional and mechanical reference tables cannot establish:

  • Complete bolted connection capacity.
  • Safe bolt group geometry or required bolt count.
  • Adequate edge distance or plate bearing capacity.
  • Slip-critical joint compliance.
  • Permission for substitutions.
  • Acceptance of improperly installed fasteners.

The Engineer of Record, governing codes, applicable standards and project-specific documents control structural applications. Calculations on this page are illustrative and labeled as such. The RCSC specification states that its values in U.S. Customary units are standard and that direct conversion to SI is strongly discouraged.

A325 Bolt Size FAQs

Straight answers to the most common A325 bolt questions.

What sizes do ASTM A325 bolts come in?

Grade A325 heavy-hex bolts are furnished in nine inch sizes from 1/2 to 1-1/2 in. The metric version, A325M, runs from M12 to M36.

What replaced ASTM A325?

ASTM F3125/F3125M replaced the standalone A325 specification. A325 is now Grade A325 within F3125.

What is ASTM F3125 Grade A325?

It is the 120 ksi class heavy-hex structural bolt grade in ASTM F3125/F3125M. It is available as Type 1 or Type 3.

Is A325 still a valid bolt designation?

Yes, as a grade designation within ASTM F3125, and it is still the common industry name.

What is the head size of a 3/4-inch A325 bolt?

The nominal head is 1-1/4 in. across flats and 15/32 in. high.

What wrench size fits a 1-inch A325 bolt?

The head is 1-5/8 in. across flats, so a 1-5/8 in. wrench or socket fits. For tool sizes, see the Nut Size Chart.

What thread pitch does A325 use?

A325 uses UNC coarse threads, for example 3/4-10, which has 10 threads per inch and a pitch of 0.100 in. (2.54 mm).

Are A325 bolts fully threaded?

Standard structural bolts are not. They have a shortened structural thread length, such as 1-3/8 in. on a 3/4 in. bolt. A fully threaded A325T is allowed for lengths up to four bolt diameters.

How long should an A325 bolt be?

Add the grip, the washer thicknesses and the diameter allowance, then round up to the next 1/4 in. A 2 in. grip with one washer on a 3/4 in. bolt gives a 3-1/4 in. preliminary length.

What is the hole size for a 3/4-inch A325 bolt?

A standard hole is 13/16 in. and an oversized hole is 15/16 in., per RCSC 2025 Table 3.1.

What is the hole size for a 1-inch A325 bolt?

A standard hole is 1-1/8 in. and an oversized hole is 1-1/4 in., per RCSC 2025 Table 3.1.

What is the tensile strength of A325?

The minimum tensile strength is 120 ksi and the minimum yield strength is 92 ksi. Those are material values, not connection capacity.

What is the minimum pretension of a 3/4-inch A325 bolt?

28 kips for pretensioned and slip-critical joints under RCSC 2025.

Is A325 equivalent to SAE Grade 5?

No. The strength can be similar, but the head, thread length, assembly and quality requirements differ. See the Bolt Grade Chart for general grade markings.

What is the difference between A325 and A490?

A325 is a Group 120 bolt (120 ksi) and A490 is a Group 150 bolt (150 ksi class). They have the same heavy-hex geometry but different pretension, coatings and compatible components.

What are A325 Type 1 and Type 3?

Type 1 is standard medium-carbon or alloy steel. Type 3 is weathering steel with an underlined head mark. Neither is stainless steel.

Can A325 bolts be galvanized?

Yes. Type 1 A325 bolts can be hot-dip or mechanically galvanized with a suitable nut and lubricant system. Type 3 bolts are normally supplied plain.

Can A325 bolts be reused?

Reuse is restricted. It depends on the grade, finish and joint type, and RCSC Section 2.11 sets the rules.

Can A325 bolts be used as anchor bolts?

No. Grade A325 structural bolts are for steel-to-steel joints. Foundation anchor rods follow a different standard. See the Anchor Bolt Size Chart.

Do A325 bolts always require pretension?

No. Many bearing-type joints are snug-tightened. Pretension is required only where the design and the RCSC provisions call for it.

What nuts and washers are used with A325?

Heavy-hex nuts to ASTM A563 (such as Grade DH) or A194 2H, and ASTM F436 hardened washers where required. Type 3 assemblies use DH3 or C3 nuts and Type 3 washers.

How do I identify an A325 structural bolt?

Check the head marking for the grade and manufacturer ID, verify the heavy-hex head width and structural thread length, and review the test report. Head marking alone is not complete proof.

Cite or Embed This Chart

Cite or Embed This Chart

Reference this chart on your own site by copying the code below. It links back to this page.

<p>Source: <a href="https://concretecalculate.com/a325-bolt-size-chart/">A325 Bolt Size Chart – ConcreteCalculate.com</a></p>

📄 Print or Save This Chart as PDF

Use your browser’s print function to save the page as a PDF reference for jobsite binders and estimating folders.

Sources and Standards Used

Dimensions come from ASME B18.2.6 as published by a bolt manufacturer. Hole sizes and pretension follow the 2025 RCSC Specification, and mechanical properties follow ASTM F3125. Pitch, metric conversions, general-bolt thread lengths and illustrative shear and tension values are calculated and marked as derived. The ASTM and ASME full texts are paid documents, so confirm against the editions adopted for your project.
