Standard Fillet Weld Leg Size and Effective Throat

This formula assumes equal legs, a 90-degree joint, and the conventional theoretical weld profile. Skewed joints, unequal-leg welds, incomplete fusion, and special penetration provisions require different treatment.

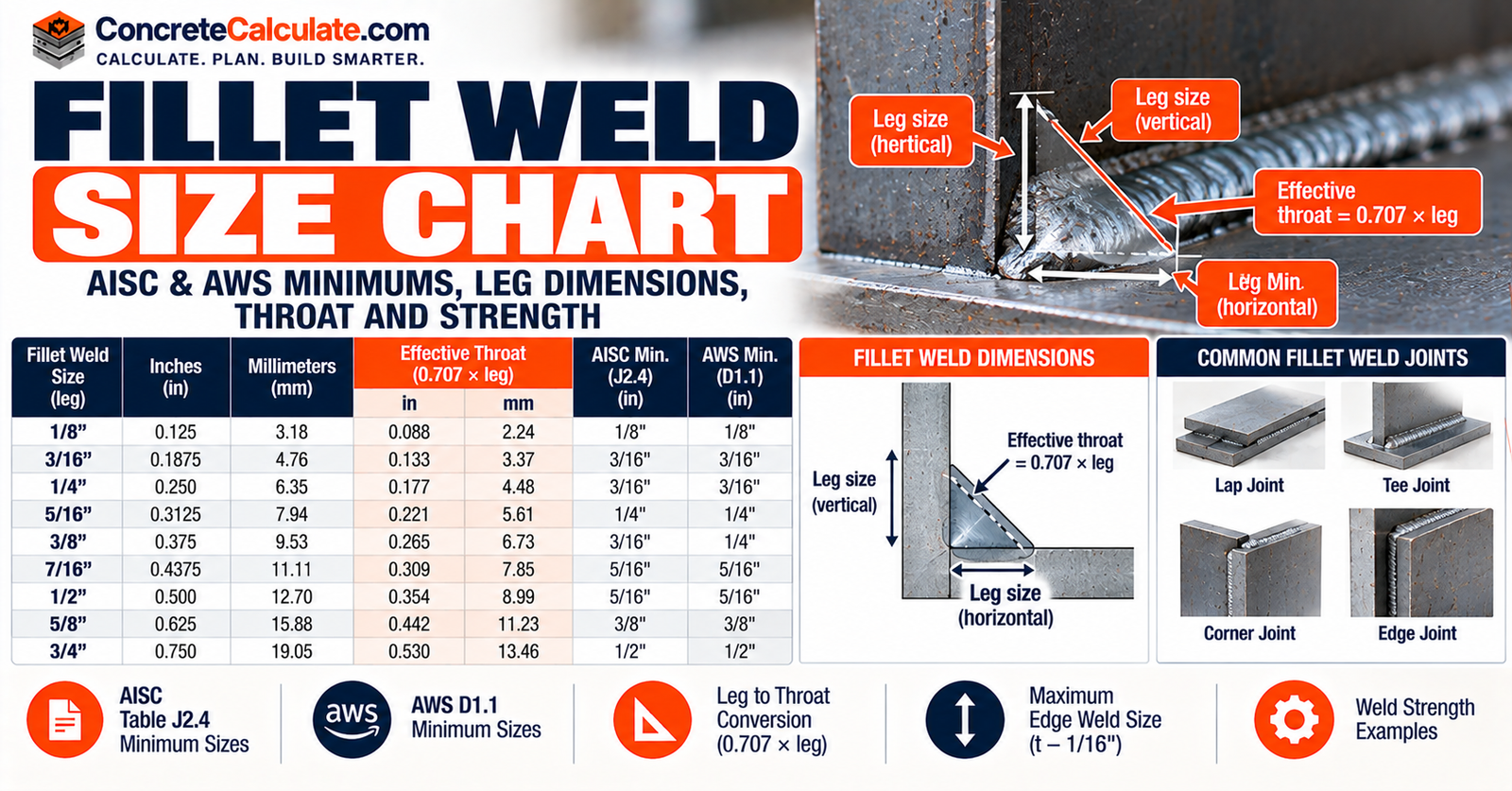

AISC Minimum Fillet Weld Size (Table J2.4)

Minimum, Maximum, and Load-Required Size: Quick Navigation

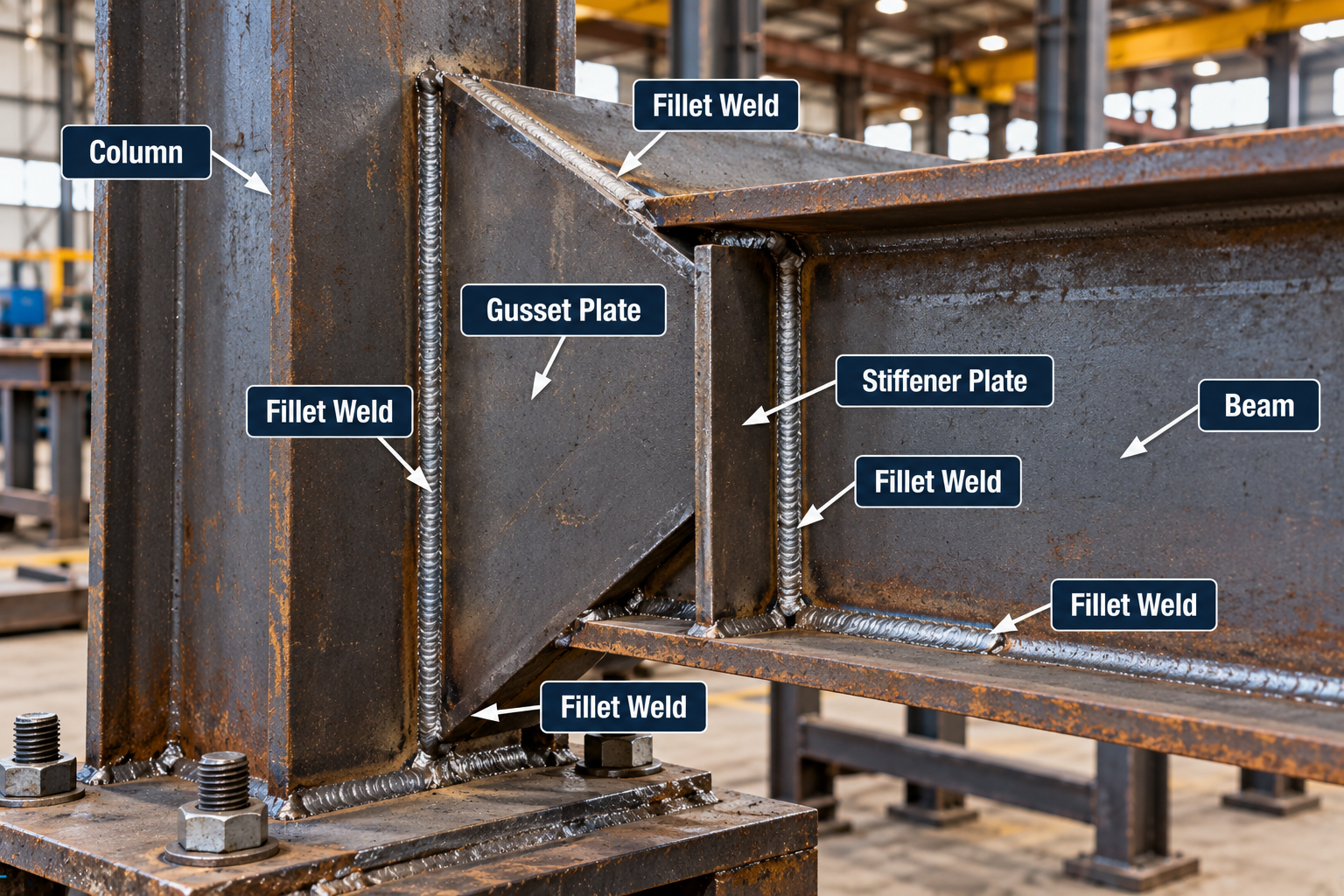

• T-joints: One member meets another at a right angle, common in stiffeners and beam connections.
• Lap joints: Overlapping plates welded along the edge of the overlap.
• Corner joints: Two members meeting at an outside or inside corner.

Fillet welds are distinct from groove welds (which fuse through a prepared joint), plug welds, slot welds, and seal welds. Detailed groove-weld design is outside the scope of this chart.

Visible bead width is not necessarily equal to specified leg size or effective throat. A convex or irregular bead can appear larger than its structurally credited throat.

Excessive surface convexity does not automatically count toward the effective throat used in conventional design; the theoretical geometric profile, not the visible bead, governs the calculation.

Distinguish exact metric conversions of U.S. fractional sizes from independently specified metric weld sizes on international drawings; they are close but not identical.

These minimums address heat input and fusion adequacy, not the size needed to resist a particular calculated force. The minimum fabrication requirement and the load-required size are two separate checks, and the table includes a groove-weld reinforcement exception addressed in the standard itself. Verify the exact table against the current adopted edition before publication or use in a fabrication specification.

Confirm which standard, code edition, welding procedure specification (WPS), and project specification control before finalizing a minimum weld size; do not assume AISC and AWS values are interchangeable.

No single universally applicable weld size applies to every pair of plate thicknesses; confirm the governing standard and its process-specific qualifications for each project.

For material thinner than 1/4 inch, the maximum is generally the material thickness. For material at least 1/4 inch thick, the ordinary maximum is the thickness minus 1/16 inch, subject to the applicable special-detailing exception. This edge limitation is distinct from welding on a broad plate face and from the separate minimum-size requirement discussed above.

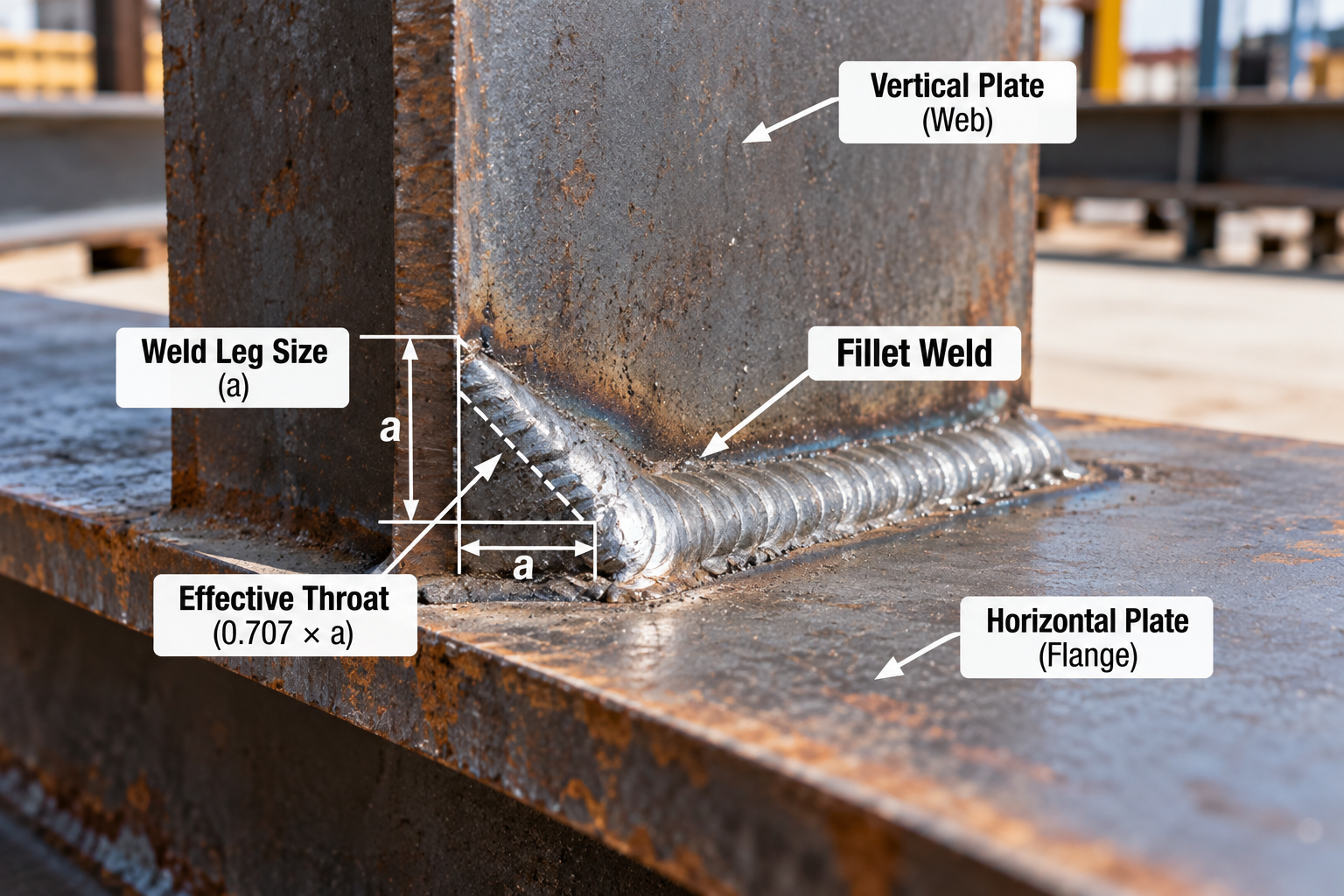

The simple 0.707 multiplier is not appropriate for unequal legs; it applies only to the equal-leg 90-degree case. Unequal-leg welding is specified where access, geometry, or connection design requirements make equal legs impractical.

• Flat profile: Approximates the theoretical triangular shape most closely.
• Concave profile: Bead surface curves inward, potentially reducing actual throat below the theoretical value.
• Convex profile: Bead bulges outward; excess material does not automatically increase the credited effective throat.
• Underfill and overlap: Can create localized throat deficiencies even where average bead size looks acceptable.

Visual bead size alone cannot establish the correct effective throat. Profile acceptance must follow the governing welding code’s specific criteria, not a general visual impression.

Geometric effective area alone does not establish available connection strength; it must be combined with the applicable weld-metal strength and resistance factors covered next.

This chart is illustrative for E70 filler metal and an ordinary longitudinal fillet weld under LRFD; it does not include any directional strength increase. A weld-strength value alone does not establish the adequacy of its connected plate or the complete connection; base-metal strength and other limit states must also be checked.

Eccentric connections, combined loading, fatigue, and specialized seismic requirements need additional engineering beyond this introductory workflow.

• E60, E70, and other classifications indicate electrode tensile strength, not automatic joint performance.
• Matching filler metal pairs weld-metal strength closely with base-metal strength.
• Undermatching may be used in certain qualified situations per the applicable WPS.
• Base-metal compatibility and relevant AWS filler-metal standards govern the correct selection.

A stronger electrode does not always permit a smaller weld, and not all welding processes use interchangeable classifications; the qualified WPS controls the actual combination used in production.

This reduction applies to end-loaded welds under the applicable provisions; do not assume the same reduction applies to every loading pattern, including welds loaded along their length in shear.

A sample specification such as a 1/4-inch intermittent fillet weld, 2-inch segments at 6-inch pitch, must clearly identify segment length and pitch. Intermittent welding cannot automatically replace a continuous structural or sealing weld; the design determines which arrangement is appropriate.

• Accessible weld faces: Some joints only allow welding from one side.
• Total effective throat area: Doubling weld sides can double geometric throat area.
• Load path and eccentricity: Single-sided welds on some joints introduce eccentric loading.
• Connection symmetry: Double-sided welds can improve load distribution in some geometries.

Doubling the number of welds does not automatically double the available strength of the complete connection if the base metal, connection geometry, or other limit states govern instead of weld shear alone.

Shear versus tension, prying, and eccentric effects vary by joint configuration. A single universal size cannot be assigned solely from the joint’s name; the actual loading and geometry govern.

Weld size is driven by connection forces, geometry, required weld length, access, material grade, and the governing specification, not by the connection type’s name alone. See the Steel I-Beam Chart for beam dimensions used in these connections, the Structural Steel Shapes Chart for member selection, and the Base Plate Calculator for base-plate sizing.

Welding thin connected parts and relatively thick structural plates involve different fusion requirements, edge limitations, heat input considerations, burn-through risk, preheat needs, multi-pass welding, and restraint. The governing minimum size can differ between AISC and AWS depending on process conditions, as discussed above. A specific welding-current or heat-input setting cannot be prescribed from plate thickness alone; the qualified WPS controls.

• Positions: Flat, horizontal, vertical, and overhead affect achievable weld size and workmanship.
• Processes: SMAW, GMAW, FCAW, and SAW have different deposition characteristics.
• Pass arrangement: Single-pass versus multi-pass fabrication depends on required size and process capability.

The approved WPS, AWS requirements, welding variables, and qualified procedure control what is permitted in production, not merely the leg dimension shown on a reference chart.

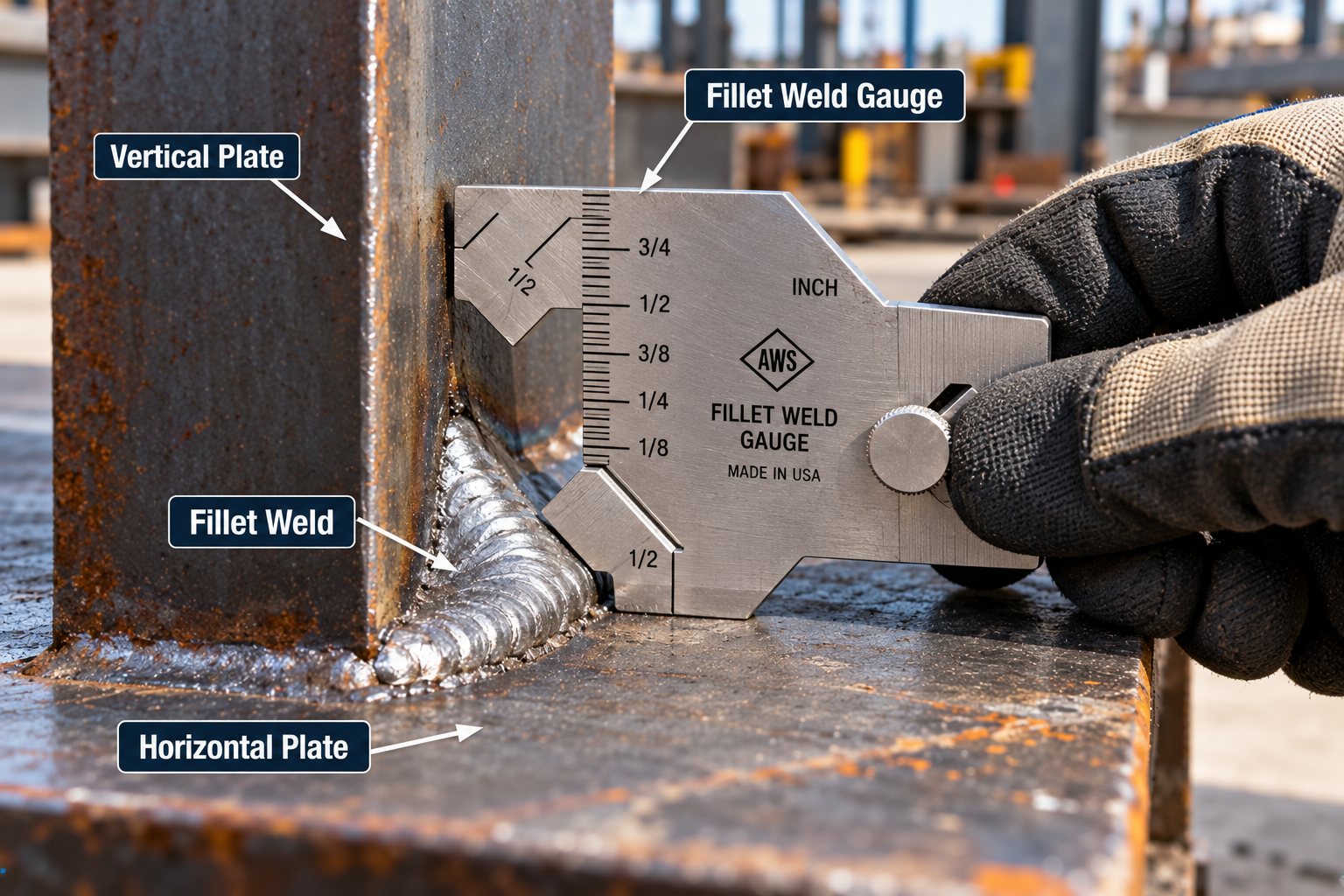

1. Use an appropriate fillet weld gauge designed for the joint geometry.
2. Measure leg size along each face of the weld.
3. For unequal-leg welds, measure each leg separately rather than assuming symmetry.
4. Check profile (flat, concave, convex) against the applicable acceptance criteria.
5. Ensure the weld face is accessible and clean before measurement.

AWS D1.1:2025 contains dedicated inspection provisions and acceptance requirements; there is no single universal defect-tolerance table that applies to every project and loading category.

Not every surface imperfection makes a weld unacceptable; acceptance depends on the governing code, loading category, and approved inspection criteria for the specific project.

Actual weld-metal usage depends on bead contour, penetration, process deposition efficiency, starts and stops, and wastage. Do not present this theoretical deposited volume as the exact purchased consumable quantity.

1. Start with the approved connection design and identify the governing standard and edition.
2. Determine connected-part thicknesses, loading, material grade, filler metal, weld access, and effective length.
3. Check calculated strength against the applied load.
4. Verify minimum fabrication size under the applicable code.
5. Verify maximum edge size where welding along a plate edge.
6. Confirm weld length requirements, including any long-weld reduction.
7. Confirm welding process and WPS requirements.
8. Review cyclic or seismic provisions if applicable.
9. Confirm inspection criteria for the project.

A welder can verify size, length, and profile from the drawing and WPS; the responsible engineer’s connection design determines the required size, standard, and applicable exceptions.
